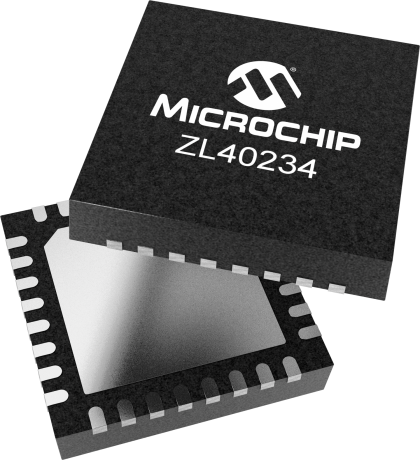

product primary image

ZL40234

Precision 1:4 Low Skew/Low Jitter Buffer

Status: In Production

View More
Overview
Documents
Development Environment
RoHS Information
Add to Cart

Device Overview

Summary

The ZL40234 is a pin configurable low additive jitter, low power 3 x 4 LVPECL/HCSL/LVDS fanout buffer.

Two inputs can accept signal in differential (LVPECL, SSTL, LVDS, HSTL, CML ) or single ended (LVPECL or LVCMOS) format and the third input can accept a single ended signal or it can be used to build a crystal oscillator by connecting an external crystal resonator between its XIN and XOUT pins.

The ZL40234 has four LVPECL/HCSL/LVDS outputs in two banks and each bank can independently be powered from 3.3V or 2.5V supply. Differential outputs can be set to be LVPECL, LVDS, HCSL or Hi-Z via control OUT_TYPE_SEL0/1 pins.

The device operates from 2.5V+/-5% or 3.3V+/-5% supply. Its operation is guaranteed over the industrial temperature range -40°C to +85°C.


Additional Features
  • 3 to 1 input Multiplexer: Two inputs accept any differential (LVPECL, HCSL, LVDS, SSTL, CML, LVCMOS) or a single ended signal and the third input accepts a crystal or a single ended signal
  • Four differential LVPECL/LVDS/HCSL outputs
  • One LVCMOS output
  • Ultra-low additive jitter: 24fs (in 12kHz to 20MHz integration band at 625MHz clock frequency)
  • Supports clock frequencies from 0 to 1.6GHz
  • Supports 2.5V or 3.3V power supplies for LVPECL,LVDS or HCSL outputs
  • Supports 1.5V, 1.8V, 2.5V or 3.3V for LVCMOS output
  • Embedded Low Drop Out (LDO) Voltage regulator provides superior Power Supply Noise Rejection
  • Maximum output to output skew of 40ps
  • Device controlled via control pins
Parametrics
Name
Value
Product Type
Fanout & Buffer and Drivers
Description
Fanout Buffer
Input
LVPECL/LVDS/HCSL/SSTL/CML/LVCMOS
Output
LVPECL/LVDS/HCSL/LVCMOS
Supply Voltage
1.5/1.8/2.5/3.3
Max Freq (GHz)
1.6
Max Within Device Skew (ps)
40
OE
True
RPE
False
FSI
False
Input Mux
True
Input EQ
False
Output Type
LVPECL/LVDS/HCSL/LVCMOS
Number Of Outputs
4

Documents

Jump to:

Data Sheets


1761KB

Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Dimension
Solder Composition
JEDEC Indicator
RoHS
China EFUP
ZL40234LDF1
0.067400
0.317500
32
VQFN
5x5x1mm
Matte Tin
e3
ZL40234LDG1
0.067400
0.359184
32
VQFN
5x5x1mm
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
