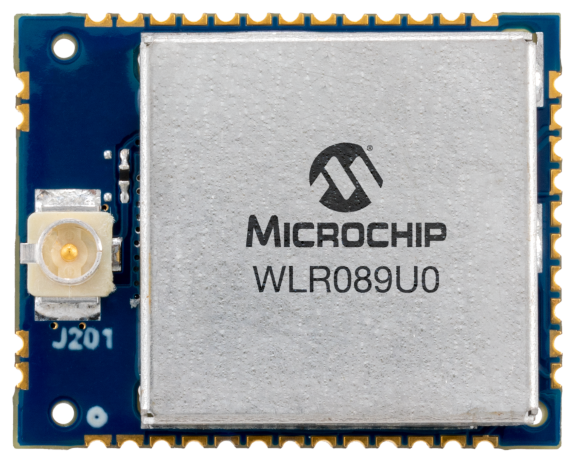

WLR089U0

Status: In Production

Features:

  • Ultra-low power LoRa Module
  • Based on highly integrated, ultra-low power SAM R34/35 LoRa family
  • Standalone module with 256 KB flash and 40KB RAM
  • 863 to 928 MHz dual-band coverage
  • Compact surface mount module : 17 mm x 13.5 mm size
  • FCC, IC and RED certified
View More
Overview
Documents
Development Environment
RoHS Information
Add To Cart

Device Overview

Summary

The WLR089U0 module is an ultra-low power, regulatory certified LoRa module based on the ATSAMR34J18 LoRa IC. This standalone module includes a 32-bit ARM® Cortex®-M0+ processor and offers 256KB of Flash and 40KB of SRAM (8KB battery backed) in a compact 17 x 13.5 mm package. With ultra-low power sleep currents as low as 790nA, the WLR089U0 modules are ideal for battery powered remote sensor applications.

The highly configurable module peripherals include up to 4 SERCOMs (configurable as I2C/SPI /UART/LIN interfaces) with one in the low power domain, 7 12-bit ADC channels and 2 analog comparators. The module supports LoRa, FSK, MSK and OOK modulations and delivers up to 18.6 dBm TX power with an RX sensitivity down to -136 dBm.

The module operates from 863 to 928 MHz and is FCC, IC and RED certified. Supported by WLR089 Xplained Pro Evaluation Kit (EV23M25A), Atmel Studio and a detailed module reference design package, these modules highly simplify the development and accelerate the time to market for LoRa end-nodes.

Reference links
To get started with software development, download and install Atmel Studio 7
For software examples, update to ASF 3.49 and above in Atmel Studio


Microchip's complimentary and confidential Wireless Check online design review service is available for customers who have selected our products for their application design-in*.
*The online design review service is subject to Microchip's Program Terms and Conditions and requires a myMicrochip account.

Additional Features
  • Ultra-low power LoRa Module
  • Based on highly integrated, ultra-low power SAM R34/35 LoRa family
  • Standalone module with 256 KB flash and 40KB RAM
  • 863 to 928 MHz dual-band coverage
  • Compact surface mount module : 17 mm x 13.5 mm size
  • FCC, IC and RED certified
Parametrics
Name
Value
Type
Sub-GHz
Output Power (dBm)
18.5 dBm
Family
SAM R34, SAM R35
Package
Surface Mount Module
IO Pins
23
RF Module
Yes
Operating Temperature Range
-40 to 85
Frequency Range
863 to 928 MHz
TX Current Consumption
41.4 mA (868 MHz), 114.6 mA (915 MHz)
RX Current Consumption
12.6 mA
Antenna
u.FL connector
Operating Voltage Range
1.8 to 3.5
Flash
256 KB

Documents

Jump to:

Supporting Collateral

User Guides

Development Environment

  • Demo & Evaluation Boards
Demo & Evaluation Boards
WLR089 Xplained Pro
WLR089 Xplained Pro ( EV23M25A )

The WLR089 Xplained Pro is a hardware platform designed to evaluate the WLR089U0 LoRa modules.

The WLR089U0 modules are FCC, IC and RED certified. The WLR089 kit is not only an evaluation platform but also an excellent reference design for developing SAMR34/35 based LoRa end-node applications.

This kit is supported by the Atmel Studio, an integrated development...

Learn More
Add To Cart

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Dimension
Solder Composition
JEDEC Indicator
RoHS
China EFUP
WLR089U0-I/RM
0.000000
1.622449
41
MODULE
13.5x17mm
Au
e4
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
