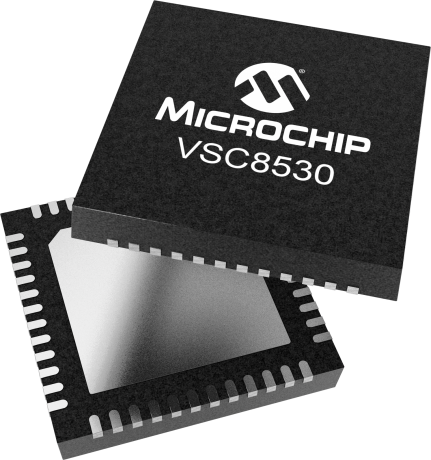

product primary image

VSC8530

1 Port FE Cu PHY with RGMII/RMII (Ind. Temp)

Status: In Production

View More
Overview
Documents
Development Environment
RoHS Information
Add To Cart

Device Overview

Summary

Low-power, small form-factor Cu PHY with IEEE 802.3az Energy Efficient Ethernet (EEE) and Wake-on-LAN (WoL), with widest I/O LVCMOS support.
The VSC8530-04 device, offered in a tiny 6 mm x 6 mm single row QFN package, is designed for space-constrained 10BASE-T/10BASE-Te/100BASE-TX applications. It features integrated line-side termination to conserve board space, lower EMI, and improve system performance. Additionally, integrated RGMII version 2.0 standard timing compliant compensation eliminates the need for on-board delay lines.
The device supports the industry’s widest range of LVCMOS levels for a parallel MAC interface including 1.5 V, 1.8 V, 2.5 V, and 3.3 V, as well as 1.2 V, 1.5 V, 1.8 V, 2.5 V, and 3.3 V support on the MDIO/MDC interface.
VSC8530-04 includes Microchip’s EcoEthernet™ 2.0 technology with Energy Efficient Ethernet and power saving features to reduce power based on link state and cable reach. It optimizes power consumption at all link operating speeds, and features Wake-on-LAN power management using magic packets.

Additional Features
    • EcoEthernet™ 2.0, with Energy Efficient Ethernet (EEE)
    • Widest voltage range, fully-compliant parallel MAC interface device
    • Tiny 6 mm x 6 mm QFN package
    • Configurable drive strength on MAC interface enables better control of system-level EMI/EMC
Parametrics
Name
Value
Ethernet Bandwidth
10/100Mbps
LEDs
4
# of Ethernet Ports
1
Interface
RMII RGMII
EEE
Yes
Temp. Range Min. (°C)
-40
Temp. Range Max. (°C)
125
HP-Auto MDIX
Yes
Wake-on-LAN
Yes
Automotive
No
Interface1
RMII/RGMII
Ethercat
Yes
Copper Support
Yes
MAC I/O Voltage
1.5/1.8/2.5/3.3
Cable Diagnostics
Yes
802.3az
Yes
On-Chip Termination
Yes

Documents

Jump to:

Data Sheets


1072KB

1056KB

Supporting Collateral


Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (grams)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
VSC8530XMW-05
0.096800
0.510204
48
VQFN
6x6x0.9mm
Matte Tin
e3
VSC8530XMW-04
0.096800
0.510204
48
VQFN
6x6x0.9mm
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
