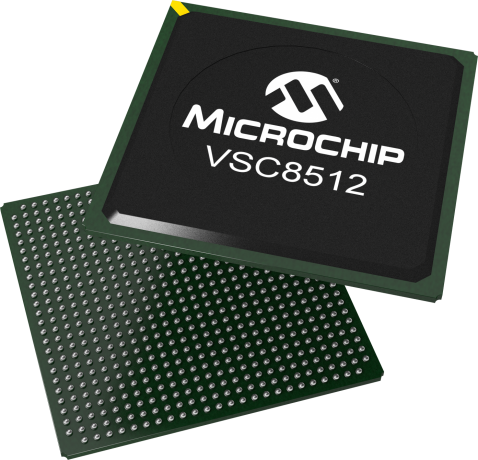

product primary image

VSC8512

12 Port GbE Cu PHY with 4 Dual Media ports an

Status: In Production

View More
Overview
Documents
Development Environment
RoHS Information
Buy Now

Device Overview

Summary

The VSC8512 is the industry's first 12-port Gigabit Ethernet (GE) copper PHY solution in a single package. The VSC8512 leverages Microsemi's new 65 nm SimpliPHY™ technology, resulting in the one of the most cost-effective and lowest power consumption devices in the industry. The single chip solution includes the most advanced EcoEthernet IEEE 802.3az Energy Efficient Ethernet features for bringing green technology solutions to market. The VSC8512 employs the latest QSGMII MAC interface to reduce PCB routing to a MAC, switch, or ASIC chip. The VSC8512 is ideal for high-density switch and router applications, enabling Ethernet multiport systems to achieve very low system Bill of Material (BOM) costs, reducing overall production costs for more cost-effective deployments. SimpliPHY devices use field-proven, fully adaptive equalization and innovative timing recovery algorithms for unparalleled noise tolerance performance. SimpliPHY devices are based on patented, fully balanced voltage-mode line driver technology, which allows lower cost magnetics to be used.

Additional Features
  • 12 GbE PHYs in a single package
    • 12 GbE PHYs in a single package
    • Four dual media copper/fiber ports
    • Lowest BOM solution requires only two voltage planes
Parametrics
Name
Value
Ethernet Bandwidth
10/100/1000Mbps
LEDs
4
EEE
Yes
Temp. Range Min. (°C)
-40
Wake-on-LAN
No
Automotive
No
Interface1
QSGMII/SGMII
Copper Support
Yes
Fiber Support
Yes
SyncE
Yes
MAC I/O Voltage
1 (differential)
Cable Diagnostics
Yes
On-Chip Termination
Yes

Documents

Jump to:

Data Sheets

06/03/2019
1069KB

Supporting Collateral

User Guides


Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (grams)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
VSC8512XJG-02
3.500900
8.250000
672
HSBGA
27x27mm
SAC305
e1
VSC8512XJG-03
3.500900
8.250000
672
HSBGA
27x27mm
SAC305
e1
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
