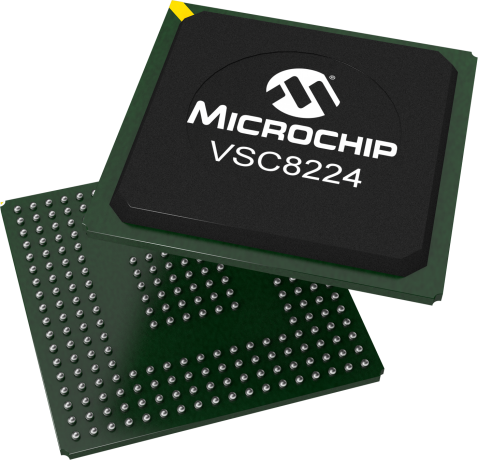

The VSC8224 is the industry's smallest, lowest power quad port Gigabit Ethernet (GE) transceiver and is ideal for multi-port switch and router applications. In 1000BASE-T mode, the VSC8224's power consumption is 30% lower than the next best competitor. In RGMII-to-SerDes applications, its best-inclass power consumption of 145mW per port is more than 40% lower than that of competitors. The device's compact 19mm x 19mm BGA package makes it ideal for high-density switch applications. Microsemi's mixed signal and DSP architecture yields robust performance, supporting both full and half duplex 10BASE-T, 100BASE-TX, and 1000BASE-T over >140m of Category 5, unshielded twisted pair (UTP) cable, with industry leading tolerance to NEXT, FEXT, Echo, and system noise.

• Patented, low EMI line driver with integrated line-side termination resistors
• Patented, low EMI line driver with integrated line-side termination resistors
• Support for greater than 10 kB Jumbo frames with programmable synchronization FIFOs
• Serial LED Interface Option
• VeriPHY™ cable diagnostics software suite
