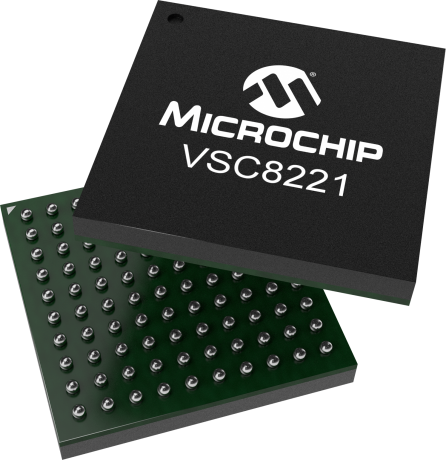

VSC8221

1 Port GbE Cu PHY with SGMII for CuSFP Apps

Status: In Production

View More
Overview
Documents
Development Environment
RoHS Information
Buy Now

Device Overview

Summary

The VSC8221 is the smallest, lowest power Gigabit Ethernet (GE) over copper PHY available and is ideal for SFP/GBIC and Media Converter applications. It is the only triple speed copper SFP PHY to meet the stringent MSA power consumption requirement of 140m of Category 5, unshielded twisted pair (UTP) cable, with industry leading tolerance to NEXT, FEXT, Echo, and system noise.

Additional Features
  • Very low power consumption: less than 700 mW
    • Very low power consumption: less than 700 mW
    • Single 3.3 V power supply with on-chip regulator
    • Supports PICMG 2.16 and 3.0 Ethernet backplanes at approximately 500 mW
    • High-performance 1.25 Gbps SerDes supports SGMII and SerDes-to-Cat5 interfaces
    • Full suite of BIST, MAC, far-end loopback, and connector loopback modes
    • Over 150 m of Cat5 reach with the industry's highest noise tolerance
    • VeriPHY™ cable diagnostics software suite
Parametrics
Name
Value
Ethernet Bandwidth
10/100/1000Mbps
LEDs
4
Wake-on-LAN
No
Automotive
No
Interface1
SGMII
Copper Support
Yes
MAC I/O Voltage
1 (differential)
Cable Diagnostics
Yes
On-Chip Termination
Yes

Documents

Jump to:

Data Sheets

01/03/2019
1137KB

Supporting Collateral

User Guides


Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (grams)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
VSC8221XHH
0.160200
0.923077
100
TFBGA
9x9x1.4mm
SAC405
e1
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
