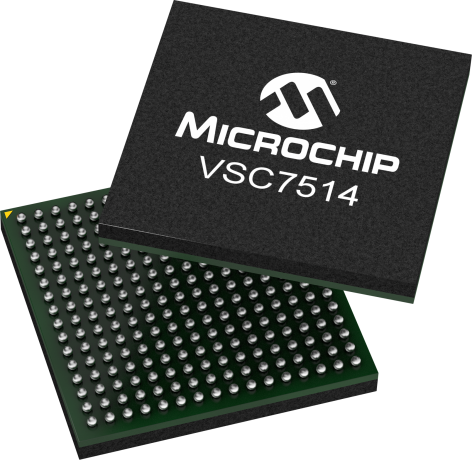

VSC7514

10 Port Industrial Ethernet Switch with 4 Int

Status: In Production

View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Add To Cart

Device Overview

Summary



Microchip's complimentary and confidential LANCheck® online design review service is available for customers who have selected our products for their application design-in. The LANCheck online design review service is subject to Microchip's Program Terms and Conditions and requires a myMicrochip account.

Additional Features
    • VSC6816: SMBStaX Linux Application Software Package for Managed Enterprise Switches
    • VSC6817: IStaX Linux Application Software Package for Managed Ethernet Switches
    • VSC6819: WebStaX Linux Application Software Package for Managed Enterprise Switches
    • SparX-IV GbE Switches
    • VSC8514 Copper PHYs
    • Unified API, WebStaX, SMBStaX, and IStaX softwares
    • Four dual media copper/SGMII ports
    • Four 1G SGMII ports
    • Two 1G/2.5G SGMII ports (one port can be configured as QSGMII)
    • Fully-managed L2 switching features
    • Industrial temperature range
    • Flexible PCIe and NPI CPU interfaces
Parametrics
Name
Value
Ethernet Bandwidth
10/100/1000/2500Mbps
MAC
10
Interrupt Pin
Yes
LEDs
128
Op. Voltage (V)
1
Interface
SGMII, QSGMII 1000Base-T (4)
IEEE 1588
Yes
Temp. Range Min. (°C)
-40
Temp. Range Max. (°C)
125
Automotive
No
Fiber Support
100FX, 1000X
Vdd I/O (V)
1.0/1.2/2.5
LinkMD Cable Diag
Yes
On-Chip Termination
Yes

Documents

Jump to:

Data Sheets


4594KB

Board Design Files


Development tools data is currently unavailable.

Similar Devices

Product
Ethernet Bandwidth
Interface
Price 5K
10/100Mbps
Host Bus
$7.53
10/100Mbps
MII/RMII
$3.76
10/100Mbps
MII/RMII/RGMII
$5.26
10/100Mbps
MII/RMII/RGMII
$8.26
10/100Mbps
MII/RMII/RGMII/SGMII
$6.62
10/100Mbps
MII/RMII/RGMII/GMII
$6.44
10/100Mbps
MII/RMII/RGMII
$3.25
10/100Mbps
MII/RMII/RGMII
$3.09
10/100Mbps
MII/RMII/RGMII/GMII
$3.20
10/100Mbps
Host Bus/PCI
$7.73
10/100Mbps
Host Bus
$6.71
10/100Mbps
Host Bus
$10.82
10/100Mbps
MII/RMII
$2.65
10/100Mbps
MII(2)/RMII(2)
$3.61
10/100Mbps
MII/RMII/MII(2)
$2.98
10/100Mbps
MII/RMII
$5.05
10/100Mbps
MII/RMII
$3.09
10/100Mbps
MII/RMII
$3.92
10/100Mbps
MII/RMII
$4.28
10/100Mbps
MII
$17.16
10/100/1000Mbps
MII/RMII/RGMII/SGMII
$10.37
10/100/1000Mbps
MII/RMII/RGMII
$5.64
10/100/1000Mbps
MII/RMII/RGMII/SGMII
$8.67
10/100/1000Mbps
MII/RMII/RGMII
$4.96
10/100/1000Mbps
MII/RMII/RGMII/GMII
$6.32
10/100/1000Mbps
MII/RMII/RGMII/SGMII
$6.39
10/100Mbps
MII/RMII/Turbo MII
$3.97
10/100Mbps
MII(2)/RMII(2)/Turbo MII(2)
$4.82
10/100Mbps
Host Bus
$7.36
10/100Mbps
Host Bus
$8.40
10/100Mbps
MII
$6.50
10/100Mbps
Host Bus/SPI/SQI
$6.75
10/100Mbps
MII/RMII/Turbo MII
$3.64
10/100Mbps
RMII
$3.41
10/100Mbps
MII/RMII/Turbo MII
$4.20
10/100/1000/2500Mbps
SGMII 1000Base-T (2)
$23.04
10/100/1000/2500Mbps
SGMII 1000Base-T (2)
$33.35
10/100/1000/2500Mbps
SGMII 1000Base-T (8)
$23.28
10/100/1000/2500Mbps
SGMII, QSGMII 1000Base-T (12)
$30.79
10/100/1000/2500Mbps
SGMII, QSGMII 1000Base-T (12)
$33.47
10/100/1000/2500Mbps
SGMII 1000Base-T (5)
$27.84
10/100/1000Mbps
SGMII 1000Base-T (8)
$28.90
10/100/1000Mbps
SGMII, QSGMII 1000Base-T (12)
$33.23
10/100/1000Mbps
QSGMII 1000Base-T (12)
$38.22
10/100/1000Mbps
SGMII, QSGMII 1000Base-T (12)
$41.54
10/100/1000/2500Mbps
SGMII 1000Base-T (8)
$28.35
10/100/1000/2500Mbps
SGMII, QSGMII 1000Base-T (12)
$68.56
10/100/1000/2500Mbps
SGMII 1000Base-T (2)
$36.08
10/100/1000/2500Mbps
SGMII 1000Base-T (2)
$46.39
10/100/1000/2500Mbps 10Gbps
SGMII 1000Base-T XFI
$59.28
10/100/1000/2500Mbps 10Gbps
SGMII 1000Base-T XFI
$69.07
10/100/1000/2500Mbps 10Gbps
SGMII, QSGMII XFI, XAUI
$84.54
10/100/1000/2500Mbps 10Gbps
SGMII 1000Base-T XFI
$31.44
10/100/1000/2500Mbps
SGMII, QSGMII
$66.40
10/100/1000/2500Mbps 10Gbps
SGMII, QSGMII XFI, XAUI, RXAUI
$71.56
10/100/1000/2500Mbps 10Gbps
SGMII, QSGMII XFI, XAUI, RXAUI
$81.87
10/100/1000/2500Mbps 10Gbps
SGMII, QSGMII XFI, XAUI, RXAUI
$87.02
10/100/1000/2500Mbps 10Gbps
SGMII, QSGMII XFI, XAUI
$115.98
10/100/1000/2500Mbps 10Gbps
SGMII, QSGMII XFI, XAUI
$154.64
10/100/1000/2500Mbps
SGMII 1000Base-T (4)
$9.79
10/100/1000/2500Mbps
SGMII, QSGMII 1000Base-T (4)
$12.37
10/100/1000/2500Mbps
SGMII, QSGMII 1000Base-T (4)
$15.46
10/100/1000/2500Mbps
SGMII, QSGMII 1000Base-T (4)
$18.56

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (grams)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
VSC7514XKS
1.111700
3.111111
256
PBGA
17x17mm
SAC305
e1
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
