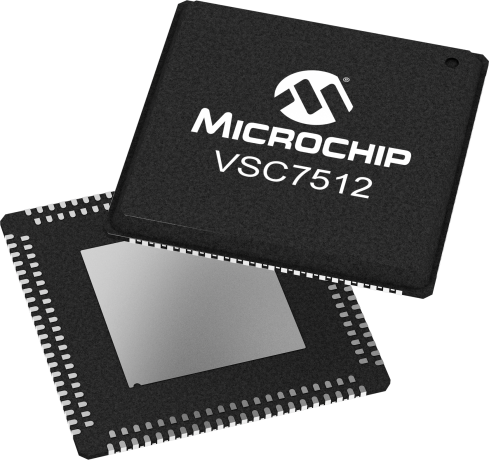

VSC7512

10 Port Unmanaged Industrial Ethernet Switch

Status: In Production

View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Add To Cart

Device Overview

Summary

Microsemi's industrial Ethernet switch device delivers the industry's lowest power Gigabit Ethernet (GbE) switching solution. The VSC7512 is a fully-integrated 10-port GbE switch with four copper PHYs in a single package.The VSC7512 leverages Microsemi's SimpliPHY technology, resulting in the one of the most cost-effective and lowest power consumption devices in the industry. The single-chip solution utilizes the most advanced Energy Efficient Ethernet features for bringing low-power, high-performance solutions to market.. The VSC7512 provides a rich set of unmanaged Ethernet switching features such as Layer-2 forwarding with basic VLAN and QoS processing, enabling the delivery of differentiated services. The VSC7512 contains an 8051 CPU for configuration of the switch. A comprehensive application software package is provided for LED control, loop indication, device overheat protection, and other enhanced functions.

Additional Features
    • VSC6825: Ocelot Unmanaged Application Software Package for 8051-based L2 Enterprise Switches
    • Ethernet Switches
    • 1G Copper PHYs
    • Low-power and single-chip industrial switch
    • Four integrated copper PHY ports
    • 2.5G SGMII NPI port or PCIe
Parametrics
Name
Value
Ethernet Bandwidth
10/100/1000/2500Mbps
MAC
10
Interrupt Pin
Yes
LEDs
128
Op. Voltage (V)
1
Interface
SGMII, QSGMII 1000Base-T (4)
IEEE 1588
Yes
Temp. Range Min. (°C)
-40
Temp. Range Max. (°C)
125
Automotive
No
Fiber Support
100FX, 1000X
Vdd I/O (V)
1.0/1.2/2.5
LinkMD Cable Diag
Yes
On-Chip Termination
Yes

Documents
