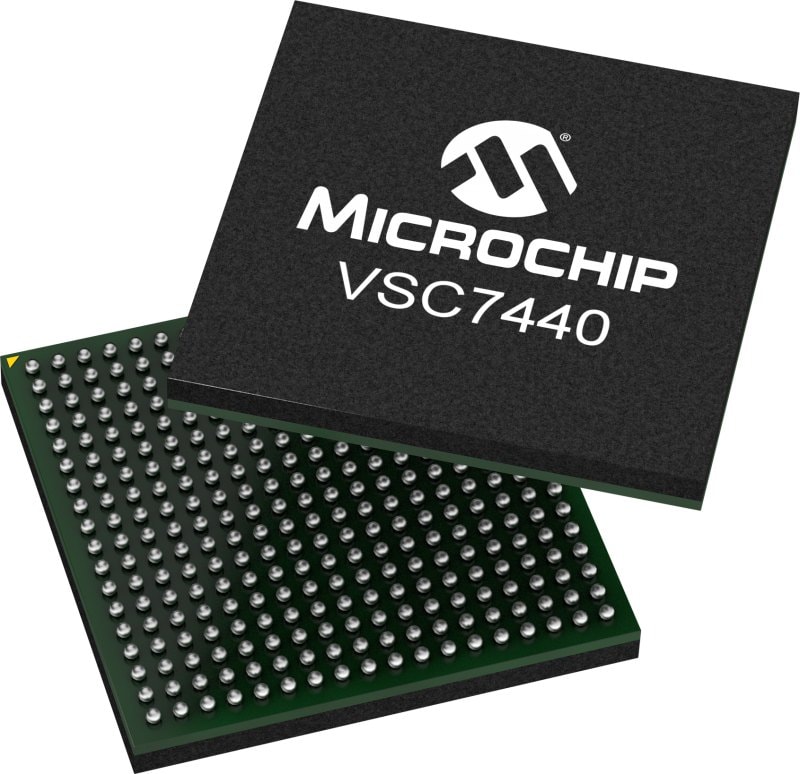

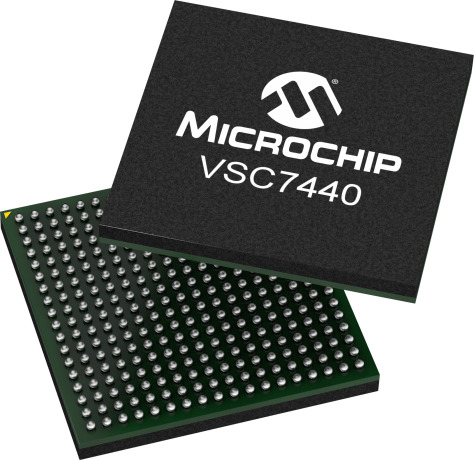

VSC7440

8x1G + 2x10G Ethernet Switch with 2 Integrate

Status: In Production

View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Add To Cart

Device Overview

Summary

The next-generation switch family from Microsemi delivers a flexible Enterprise and Industrial Ethernet solution. The VSC7440 SparX-IV-34 device is an SMB/SME Ethernet switch with up to 10 ports supporting a combination of 1G, 2.5G, and 10G Ethernet ports.The device provides a rich set of Enterprise Ethernet switching features. Using multistage Versatile TCAM technology (VCAP), it delivers VLAN and QoS processing that enables delivery of differentiated services, security through intelligent frame processing, and egress frame manipulation.For industrial applications, VSC7440 integrates VeriTime, Microsemi's patent-pending timing technology that delivers the industry's most accurate IEEE 1588v2 time stamping. Combined with the PTP software and an advanced Servo algorithm, Microsemi offers the most accurate 1588 solution.A powerful 500 MHz CPU enables full management of a Layer 2 and Layer 3 Ethernet switch solution.A comprehensive application programming interface (API) and a software development package (SDK) accelerate time-to-market for managed Ethernet applications. The software API package integrates easily with third-party software, preserving existing software investments.

Additional Features
    • VSC6816: SMBStaX Linux Application Software Package for Managed Enterprise Switches
    • VSC6817: IStaX Linux Application Software Package for Managed Ethernet Switches
    • VSC6819: WebStaX Linux Application Software Package for Managed Enterprise Switches
    • SparX-III GbE Switches with integrated copper PHYs
    • VSC8504 4-port Copper PHYs
    • Unified API, WebStaX™, and SMBStaX™ software
    • Four 1G, four 1G/2.5G, and two 1G/2.5G/10G ports
    • Up to two integrated copper PHYs and two 10G SerDes
    • Fully-managed L2 switching and L3 forwarding features
    • Extended temperature range
    • Easy upgrade within the SparX-IV family to higher bandwidth (including 10 GbE port support)
Parametrics
Name
Value
Ethernet Bandwidth
10/100/1000/2500Mbps 10Gbps
MAC
10
Interrupt Pin
Yes
LEDs
128
Op. Voltage (V)
1
Interface
SGMII 1000Base-T XFI
IEEE 1588
Yes
Temp. Range Min. (°C)
-40
Temp. Range Max. (°C)
125
Automotive
No
Fiber Support
100FX, 1000X, SFI
Vdd I/O (V)
1.0/1.2/2.5
LinkMD Cable Diag
Yes
On-Chip Termination
Yes

Documents

Jump to:

Data Sheets


Development tools data is currently unavailable.

Similar Devices

Product
Ethernet Bandwidth
Interface
Price 5K
10/100Mbps
Host Bus
$7.53
10/100Mbps
MII/RMII
$3.76
10/100Mbps
MII/RMII/RGMII
$5.26
10/100Mbps
MII/RMII/RGMII
$8.26
