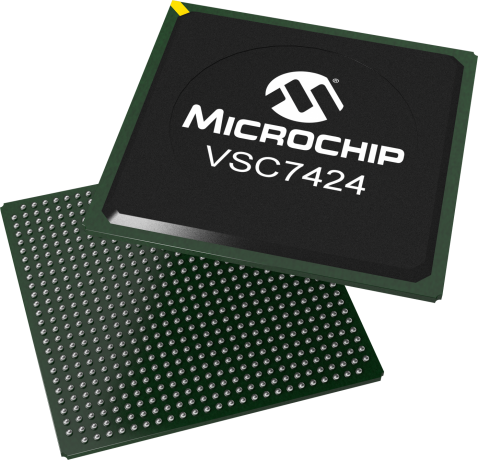

product primary image

VSC7424

10 Port Managed L2 Switch with 8 Integrated C

Status: In Production

View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Add To Cart

Device Overview

Summary

The VSC7424 is the industry’s first fully integrated 10-port Gigabit Ethernet (GE) switch with eight copper PHYs in a single package. The VSC7424 leverages new 65 nm SimpliPHY™ technology, resulting in the one of the most cost-effective and lowest power consumption devices in the industry. The single-chip solution combines the most advanced IEEE 802.3az Energy Efficient Ethernet features for bringing green technology solutions to market. The VSC7424 provides a rich set of Small Medium Enterprise (SME) Ethernet switching features such as Layer-2 forwarding with advanced TCAM-based VLAN and QoS processing, enabling the delivery of differentiated services. Security is ensured through frame processing using a TCAM-based Versatile Content Aware Processor (VCAP-II). The VSC7424 contains a powerful 416 MHz CPU, enabling full management of the switch. A comprehensive application programming interface (API) and software development package is available for Layer-2 Managed Ethernet applications for faster time-to-market. The software API package integrates easily with third-party software, preserving existing software investments.

Supported Ethernet Software Options

Microchip's complimentary and confidential LANCheck® online design review service is available for customers who have selected our products for their application design-in. The LANCheck online design review service is subject to Microchip's Program Terms and Conditions and requires a myMicrochip account.

Additional Features
    • VSC6816: SMBStaX Linux Application Software Package for Managed Enterprise Switches
    • VSC6819: WebStaX Linux Application Software Package for Managed Enterprise Switches
    • GE PHYs
    • 10GE PHYs
    • Ethernet Software
    • Supports IEEE 802.3az and green energy efficiency modes with ActiPHY™ and PerfectReach™
    • Lowest BOM solution requires only one IC
    • Up to two SGMII ports with 100Mbps and 1Gbps fiber support
Parametrics
Name
Value
Ethernet Bandwidth
10/100/1000Mbps
MAC
10
Interrupt Pin
Yes
LEDs
128
Op. Voltage (V)
1
Interface
SGMII 1000Base-T (8)
Temp. Range Max. (°C)
125
Automotive
No
Fiber Support
100FX, 1000X
Vdd I/O (V)
1.0/1.2/2.5
LinkMD Cable Diag
Yes
On-Chip Termination
Yes

Documents

Jump to:

Board Design Files

Development Environment

  • Demo & Evaluation Boards
  • Software Libraries
Demo & Evaluation Boards
VSC7429 Caracal Evaluation Board, 24xRJ45/2xSFP
VSC7429 Caracal Evaluation Board, 24xRJ45/2xSFP ( VSC5611EV )

The VSC5611EV ethernet development system can be used to demonstrate the SparX-III managed / Caracal Ethernet switches and the VSC8512 PHY device

Learn More
Add To Cart
Software Libraries
VSC6816 SMBStaX Software

To obtain the SMBStaX Linux Software Package (Ver. 2019.12 or later), contact Microchip Technical Support.

Learn More
VSC6819 WebStaX Software

To obtain the WebStaX Linux Software Package (Ver. 2019.12 or later), contact Microchip Technical Support.

Learn More

Similar Devices

Product
Ethernet Bandwidth
Interface
Price 5K
10/100Mbps
Host Bus
$7.53
10/100Mbps
MII/RMII
$3.76
10/100Mbps
MII/RMII/RGMII
$5.26
10/100Mbps
MII/RMII/RGMII
$8.26
10/100Mbps
MII/RMII/RGMII/SGMII
$6.62
10/100Mbps
MII/RMII/RGMII/GMII
$6.44
10/100Mbps
MII/RMII/RGMII
$3.25
10/100Mbps
MII/RMII/RGMII
$3.09
10/100Mbps
MII/RMII/RGMII/GMII
$3.20
10/100Mbps
Host Bus/PCI
$7.73
10/100Mbps
Host Bus
$6.71
10/100Mbps
Host Bus
$10.82
10/100Mbps
MII/RMII
$2.65
10/100Mbps
MII(2)/RMII(2)
$3.61
10/100Mbps
MII/RMII/MII(2)
$2.98
10/100Mbps
MII/RMII
$5.05
10/100Mbps
MII/RMII
$3.09
10/100Mbps
MII/RMII
$3.92
10/100Mbps
MII/RMII
$4.28
10/100Mbps
MII
$17.16
10/100/1000Mbps
MII/RMII/RGMII/SGMII
$10.37
10/100/1000Mbps
MII/RMII/RGMII
$5.64
10/100/1000Mbps
MII/RMII/RGMII/SGMII
$8.67
10/100/1000Mbps
MII/RMII/RGMII
$4.96
10/100/1000Mbps
MII/RMII/RGMII/GMII
$6.32
10/100/1000Mbps
MII/RMII/RGMII/SGMII
$6.39
10/100Mbps
MII/RMII/Turbo MII
$3.97
10/100Mbps
MII(2)/RMII(2)/Turbo MII(2)
$4.82
10/100Mbps
Host Bus
$7.36
10/100Mbps
Host Bus
$8.40
10/100Mbps
MII
$6.50
10/100Mbps
Host Bus/SPI/SQI
$6.75
10/100Mbps
MII/RMII/Turbo MII
$3.64
10/100Mbps
RMII
$3.41
10/100Mbps
MII/RMII/Turbo MII
$4.20
10/100/1000/2500Mbps
SGMII 1000Base-T (2)
$23.04
10/100/1000/2500Mbps
SGMII 1000Base-T (2)
$33.35
10/100/1000/2500Mbps
SGMII 1000Base-T (8)
$24.48
10/100/1000/2500Mbps
SGMII, QSGMII 1000Base-T (12)
$28.15
10/100/1000/2500Mbps
SGMII, QSGMII 1000Base-T (12)
$35.20
10/100/1000/2500Mbps
SGMII 1000Base-T (5)
$27.84
10/100/1000Mbps
SGMII 1000Base-T (8)
$28.90
10/100/1000Mbps
SGMII, QSGMII 1000Base-T (12)
$33.23
10/100/1000Mbps
QSGMII 1000Base-T (12)
$38.22
10/100/1000Mbps
SGMII, QSGMII 1000Base-T (12)
$41.54
10/100/1000/2500Mbps
SGMII 1000Base-T (8)
$28.35
10/100/1000/2500Mbps
SGMII, QSGMII 1000Base-T (12)
$68.56
10/100/1000/2500Mbps
SGMII 1000Base-T (2)
$36.08
10/100/1000/2500Mbps
SGMII 1000Base-T (2)
$46.39
10/100/1000/2500Mbps 10Gbps
SGMII 1000Base-T XFI
$59.28
10/100/1000/2500Mbps 10Gbps
SGMII 1000Base-T XFI
$69.07
10/100/1000/2500Mbps 10Gbps
SGMII, QSGMII XFI, XAUI
$84.54
10/100/1000/2500Mbps 10Gbps
SGMII 1000Base-T XFI
$31.44
10/100/1000/2500Mbps
SGMII, QSGMII
$66.40
10/100/1000/2500Mbps 10Gbps
SGMII, QSGMII XFI, XAUI, RXAUI
$71.56
10/100/1000/2500Mbps 10Gbps
SGMII, QSGMII XFI, XAUI, RXAUI
$81.87
10/100/1000/2500Mbps 10Gbps
SGMII, QSGMII XFI, XAUI, RXAUI
$87.02
10/100/1000/2500Mbps 10Gbps
SGMII, QSGMII XFI, XAUI
$115.98
10/100/1000/2500Mbps 10Gbps
SGMII, QSGMII XFI, XAUI
$154.64
10/100/1000/2500Mbps
SGMII 1000Base-T (4)
$9.79
10/100/1000/2500Mbps
SGMII, QSGMII 1000Base-T (4)
$12.37
10/100/1000/2500Mbps
SGMII, QSGMII 1000Base-T (4)
$15.46
10/100/1000/2500Mbps
SGMII, QSGMII 1000Base-T (4)
$18.56

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
VSC7424XJG-02
3.500900
8.250000
672
HSBGA
27x27mm
SAC305
e1
VSC7424XJG-12
3.500900
8.250000
672
HSBGA
27x27mm
SAC305
e1
To see a complete listing of RoHS data for this device, please Click here
