Microchip Technology Inc

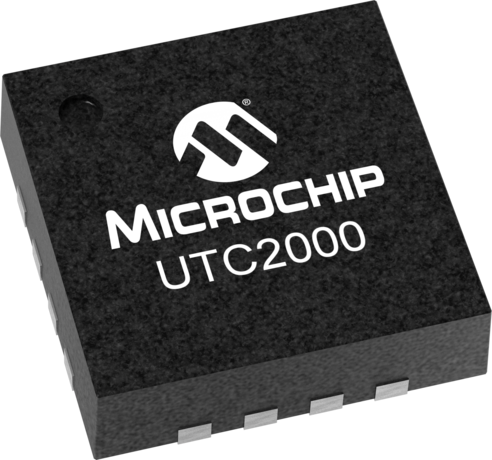

UTC2000

In Production

The USB Type-CTM connector has revolutionized the wired connectivity world.  It allows full featured systems to be capable of one single port of connection for SuperSpeed+ data transfers, high power (up to 100W per port), and graphics capability all through one single standard cable. Some cost sensitive products and applications value the smaller form factor and reversibility features of the USB Type-CTM connector, but do not necessarily care about other features like high power or graphics delivery.  Instead, they prefer to implement the USB Type-CTM connector in their products at the lowest possible cost.

The UTC2000 is a basic USB Type-CTM controller that can be designed-in to any existing product to upgrade to USB Type-CTM.  It provides the system a way to detect a USB Type-CTM cable is inserted or removed, detects which direction the cable is plugged in, and then controls the rest of the system to do its job.  This includes enabling the port power controller to provide or sink the USB Type-CTM power profiles, enabling USB2.0/3.x data systems, as well as switching the USB Type-CTM port depending upon which direction the cable is plugged in.  The UTC2000 is offerred in an extremely small package size, and is provided in consumer, industrial and extended temperature versions.  Automotive qualified version is also available.



    Features

          Highlight



          • Transition any USB Type-A port to USB Type-CTM
          • Allows USB Type-CTM cable detection and reversibility
          • Supports legacy, 1.5A and 3A USB Type-CTM charging profiles
          • Supports USB Type-CTM audio adapter
          • Can be used in Downstream and Upstream Facing Port (DFP, UFP) applications
          • Extremely simple design to implement in products
          • Consumer, Industrial, and Extended temperature versions
          • Automotive qualified version also available
    Parameter Name
    Value
    Mode
    DFP and UFP
    Modulation
    USB Type-C
    Temp. Range Min.
    -40
    Temp. Range Max.
    125
    Package
    QFN
    Documentation
    Data Sheets
    08/17/2015
    756KB
      BOM



    BOM
    08/17/2015
    43KB
    BOM
    08/17/2015
    45KB
      Gerber Files




    Gerber Files
    08/17/2015
    1559KB
    Gerber Files
    08/17/2015
    1583KB
      Schematics



    Schematics
    08/17/2015
    721KB
    Schematics
    08/17/2015
    518KB
      User Guides




    User Guides
    11/20/2015
    2991KB
    Pricing & Samples
    All pricing shown in USD only.
    Part Number
    Leads
    Package Type
    Temp Range
    Packing
    1+
    26+
    100+
    1000+
    5000+
    Buy
    Sample
    UTC2000/MG
    16
    QFN
    0C to +70C
    TUBE
    0.96
    0.80
    0.73
    0.67
    0.64
    UTC2000-E/MG
    16
    QFN
    -40C to +125C
    TUBE
    1.20
    1.00
    0.91
    0.84
    0.80
    UTC2000-I/MG
    16
    QFN
    -40C to +85C
    TUBE
    1.11
    0.92
    0.84
    0.78
    0.74
    UTC2000T/MG
    16
    QFN
    0C to +70C
    T/R
    1.03
    0.85
    0.78
    0.72
    0.68
    UTC2000T-E/MG
    16
    QFN
    -40C to +125C
    T/R
    1.27
    1.05
    0.96
    0.89
    0.84
    UTC2000T-I/MG
    16
    QFN
    -40C to +85C
    T/R
    1.17
    0.97
    0.89
    0.82
    0.78

    ** Device not available to purchase online. Please contact a sales office for pricing information.
    Open a microchipDIRECT account today!

    Development Tools
    • Demo & Eval Boards
    • EVK-UTC2000 Basic USB Type-C Controller evaluation kit ( EVK-UTC2000 )

      EVK-UTC2000

      The EVK-UTC2000 is a complete evaluation kit for Microchip's UTC2000 USB-C controller.  The evaluation kit allows user to evaluate the UTC2000 USB-C controller in either host (DFP) or device (UFP) modes.  Simply plug the USB Type-A dongle into any standard Type-A port, and plug in the device (UFP) board using the included USB-C cable. Users can test the different configurations as...

    Similar Devices
    Product
    Price5K
    $1.16
    $1.24
    $0.64
    RoHS Information
    Part
    Number
    Device
    Weight
    Shipping
    Weight
    Lead
    Count
    Package
    Type
    Package
    Width
    Solder
    Composition
    JEDEC
    Indicator
    RoHS

    China
    EFUP
    UTC2000T/MG
    0.021600
    0.234849
    16
    QFN
    3x3x0.9mm
    Matte Tin
    e3
    UTC2000T-I/MG
    0.021600
    0.234849
    16
    QFN
    3x3x0.9mm
    Matte Tin
    e3
    UTC2000/MG
    0.021600
    0.041667
    16
    QFN
    3x3x0.9mm
    Matte Tin
    e3
    UTC2000-I/MG
    0.021600
    0.041667
    16
    QFN
    3x3x0.9mm
    Matte Tin
    e3
    UTC2000-E/MG042
    0.021600
    0.041667
    16
    QFN
    3x3x0.9mm
    Matte Tin
    e3
    UTC2000T-E/MG042
    0.021600
    0.234849
    16
    QFN
    3x3x0.9mm
    Matte Tin
    e3
    UTC2000-E/MG
    0.021600
    0.041667
    16
    QFN
    3x3x0.9mm
    Matte Tin
    e3
    UTC2000T-E/MG
    0.021600
    0.234849
    16
    QFN
    3x3x0.9mm
    Matte Tin
    e3
    To see a complete listing of RoHS data for this device, please Click here
    Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
