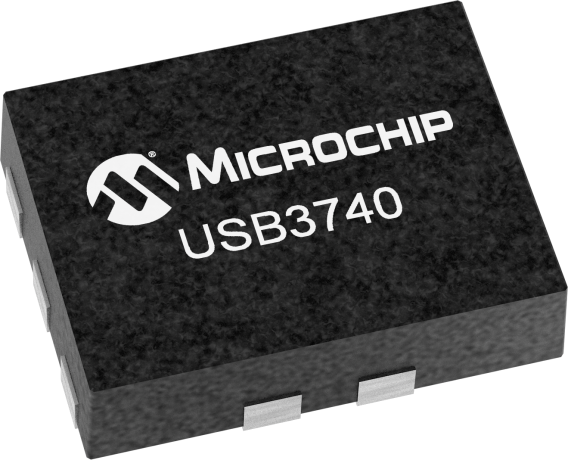

USB3740

Status: In Production

Features:

  • Enables single port of connectivity in USB applications
  • 30nA typical active/standby current
  • 1GHz bandwidth for excellent signal integrity
  • 15kV IEC capability for contact and air discharge
  • Simplified two pin control
  • Supports industrial temperature range (-40° to 85°C)
  • 10-pin QFN, RoHS-compliant package
  • Smart phones
  • Televisions
  • Storage Drives
  • Headsets
  • Media Players
  • Tablets and Docking Stations
  • Bluetooth® Earpieces
  • MP3 Players
  • Industrial Products
View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Add To Cart

Device Overview

Summary

Microchip's USB3740 family of Hi-Speed USB switches were specifically designed to enable a range of applications to achieve single-port connectivity. Their design provides a substantial 1GHz of bandwidth, allowing for the passage of robust USB 2.0 signals. The USB3740 is a high-performance USB 2.0 switch providing excellent flexibility, with very low current consumption in an extremely small package. Coupled together, these features help solve a wide variety of common connectivity design challenges. Additionally, Microchip's complimentary and confidential USBCheck™ online design review service is available for customers who select the USB3740 for their application design-in.*


*The USBCheck online design review service is subject to Microchip's Program Terms and Conditions and requires a myMicrochip account.

Additional Features

    Highlights

    • Enables single port of connectivity in USB applications
    • 30nA typical active/standby current
    • 1GHz bandwidth for excellent signal integrity
    • 15kV IEC capability for contact and air discharge
    • Simplified two pin control
    • Supports industrial temperature range (-40° to 85°C)
    • 10-pin QFN, RoHS-compliant package

    Target Applications

    • Smart phones
    • Televisions
    • Storage Drives
    • Headsets
    • Media Players
    • Tablets and Docking Stations
    • Bluetooth® Earpieces
    • MP3 Players
    • Industrial Products
Parametrics
Name
Value
Description
USB 2.0 High Speed Switch
Upstream Port
USB 2.0
USB Speed
High Speed
Port Protection
Yes
Hi-Speed Switch
Yes
Temp. Range Min.
-40
Temp. Range Max.
85

Documents

Jump to:

User Guides

Development Environment

  • Demo & Evaluation Boards
Demo & Evaluation Boards
USB3740 High Speed Switch Evaluation Board
USB3740 High Speed Switch Evaluation Board ( EVB-USB3740 )

The USB3740 family of Hi-Speed USB switches were specifically designed to enable a range of applications to achieve single-port connectivity. Their design provides a substantial 1GHz of bandwidth, allowing for the passage of robust USB 2.0 signals. The USB3740 is a high-performance USB 2.0 switch providing excellent flexibility with very low current consumption in an extremely small package.

Learn More
Add To Cart

Similar Devices

Product
Upstream Port
USB Speed
Temp. Range Max. (C°)
Price 5K
USB 2.0
High Speed
85
$0.56
USB 2.0
High Speed
85
$0.79
USB 2.0
High Speed
85
$0.67
USB 2.0
High Speed
85
$0.67

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (grams)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
USB3740B-AI2-TR
0.011000
0.040000
10
UQFN
1.3x1.8x0.58
NiPdAu
e4
USB3740B-AI9-TR
0.005200
0.043333
10
UQFN
1.6x2.1x0.58
NiPdAu
e4
USB3740T-I/ML-V01
0.005200
0.043333
10
UQFN
1.6x2.1x0.58
NiPdAu
e4
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
