USB3503

Status: In Production

Features:

  • Integrated USB 2.0-compatible 3-port hub
  • HSIC upstream port
  • Advanced power saving features including 1μA standby current
  • USB-IF BC 1.1 detection
  • Supports Single-TT or Multi-TT configurations for Full and Low-Speed connections
  • Enhanced configuration options available through serial I2C slave port
  • Internal default configuration option when serial I2C host is not available
  • Incorporates proprietary Microchip technologies: MultiTRAK™, PortMap, PortSwap, PHYBoost, VariSense™ and flexPWR®
  • External 12, 19.2, 24, 25, 26, 27, 38.4 or 52MHz clock inputs
  • Internal 3.3V and 1.2V voltage regulators for single supply operation
  • USB Port ESD Protection (DP/DM) up to ±15kV (IEC 61000-4-2)
  • Commercial (0° to 70°C) and industrial (-40° to 85°C) temperature range options

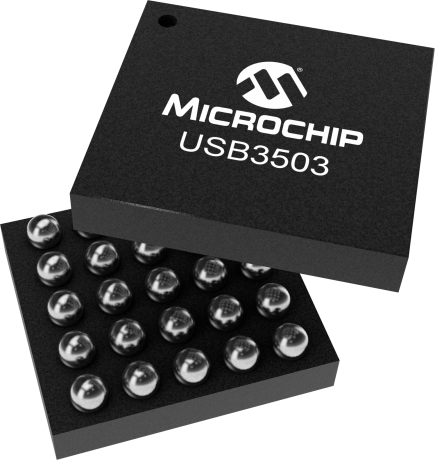

  • 25-ball WLCSP, (1.97mm x 1.97mm) - 0.4mm ball pitch RoHS-compliant package

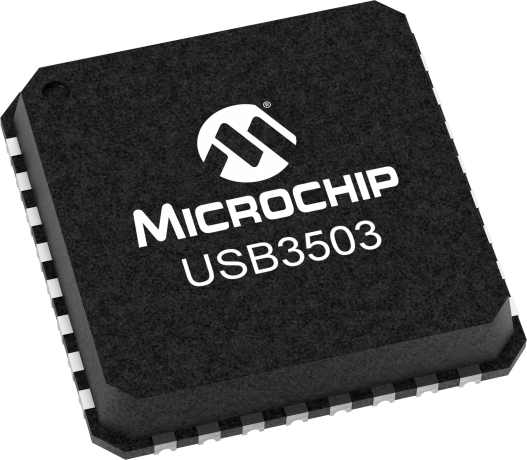

  • 32-pin SQFN (5.0 mm x 5.0 mm) Package
  • Mobile Phones
  • Tablet Computers
  • Ultra-mobile PCs
  • e-Readers
  • Digital Still Cameras
  • Digital Video Camcorders
  • Gaming Consoles
  • PDAs
  • Portable Media Players
  • GPS Personal Navigation Devices
  • Media Players/Viewers
View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Buy Now

Device Overview

Summary

As portable devices continue to add more features and the system architecture becomes more complex, it is necessary to have more than one USB port to manage communications with internal and external peripheral devices. Microchip's low-power USB3503 offers three downstream ports and is specifically designed for portable embedded applications where more than one USB port is required. The USB3503 attaches to an upstream port via HSIC and supports Low, Full and Hi-Speed downstream devices on all enabled downstream ports. The package size has been minimized to save valuable PCB space, making the device well-suited for portable, battery-powered embedded systems where power consumption, reduced BOM cost and Battery Charger (BC) detection capabilities are critical design requirements.

The USB3503 is the industry's first HSIC-based USB 2.0 hub controller designed specifically for portable consumer electronics products such as smartphones, tablets and e-readers. Designed to deliver the low-power and ultra-small footprint that portable product designers demand, the USB3503 also delivers robust USB performance proven through multiple generations of Microchip USB 2.0 hub controller products.

The USB3503 integrates the latest USB-IF Battery Charging 1.1 specification with Microchip's RapidCharge Anywhere™ functionality that dramatically reduces the time required for battery charging, while its flexible power regulators facilitate simple design into battery-powered devices. Microchip's complimentary and confidential USBCheck™ online design review service is available for customers who select the USB3503 for their application design-in.*


*The USBCheck online design review service is subject to Microchip's Program Terms and Conditions and requires a myMicrochip account.

Additional Features

    Highlights

    • Integrated USB 2.0-compatible 3-port hub
    • HSIC upstream port
    • Advanced power saving features including 1μA standby current
    • USB-IF BC 1.1 detection
    • Supports Single-TT or Multi-TT configurations for Full and Low-Speed connections
    • Enhanced configuration options available through serial I2C slave port
    • Internal default configuration option when serial I2C host is not available
    • Incorporates proprietary Microchip technologies: MultiTRAK™, PortMap, PortSwap, PHYBoost, VariSense™ and flexPWR®
    • External 12, 19.2, 24, 25, 26, 27, 38.4 or 52MHz clock inputs
    • Internal 3.3V and 1.2V voltage regulators for single supply operation
    • USB Port ESD Protection (DP/DM) up to ±15kV (IEC 61000-4-2)
    • Commercial (0° to 70°C) and industrial (-40° to 85°C) temperature range options
    • 25-ball WLCSP, (1.97mm x 1.97mm) - 0.4mm ball pitch RoHS-compliant package
    • 32-pin SQFN (5.0 mm x 5.0 mm) Package

    Target Applications

    • Mobile Phones
    • Tablet Computers
    • Ultra-mobile PCs
    • e-Readers
    • Digital Still Cameras
    • Digital Video Camcorders
    • Gaming Consoles
    • PDAs
    • Portable Media Players
    • GPS Personal Navigation Devices
    • Media Players/Viewers
Parametrics
Name
Value
Upstream Port
HSIC
USB Speed
USB 2.0
Downstream Ports
3
MGMT I/F
I2C
Op Voltage (V)
3.3
MultiTRAK Tech
Yes
PortMap
Yes
PortSwap
Yes
PHYBoost
Yes
Temp. Range Min.
-40
Temp. Range Max.
85

Documents

Jump to:

Board Design Files

06/23/2015
146KB
06/24/2015
146KB

Software Libraries/Firmware

User Guides

Development Environment

  • Demo & Evaluation Boards
Demo & Evaluation Boards
USB3503 HSIC to USB 2.0 Mobile Hub Evaluation Board
USB3503 HSIC to USB 2.0 Mobile Hub Evaluation Board ( EVB-USB3503 )

The EVB-USB3503 is a fully functioning stand-alone USB hub designed for evaluation of the Microchip USB3503 USB 2.0 HSIC high-speed hub controller. This tool also provides access to the USB3503s HSIC upstream port, three USB 2.0 downstream ports and I2C interface. Included evaluation software allows the user to configure and monitor the EVB-USB3503 when used with a Total Phase Aardvark adapter

...

Learn More
Add To Cart

Similar Devices

Product
Price 5K
$1.31
$1.03
$1.71
$2.29
$2.52
$2.52
$4.04
$1.55
$1.09

$1.41
$1.97
$1.45
$3.17
$3.02
$1.97
$2.56
$2.63
$1.80
$2.70
$1.80
$2.70
$2.89
$2.85

$3.54
$3.71

$4.17
$4.84
$4.17
$3.10
$3.44
$5.16
$5.16
$5.04
$5.04
$5.40
$5.40
$5.76
$5.16
$5.40
$5.76
$4.78
$5.35
$5.20
$5.07
$5.63

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (grams)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
USB3503/ML
0.067800
0.714286
32
QFN
5x5x0.9mm
Matte Tin
e3
USB3503-I/ML
0.067800
0.714286
32
QFN
5x5x0.9mm
Matte Tin
e3
USB3503T/ML
0.067800
0.185758
32
QFN
5x5x0.9mm
Matte Tin
e3
USB3503T-I/ML
0.067800
0.185758
32
QFN
5x5x0.9mm
Matte Tin
e3
USB3503A-1-GL-TR
0.009450
0.040000
25
WLCSP
1.97x1.97x0.57
SAC
e1
USB3503AI-1-GL-TR
0.009450
0.040000
25
WLCSP
1.97x1.97x0.57
SAC
e1
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
