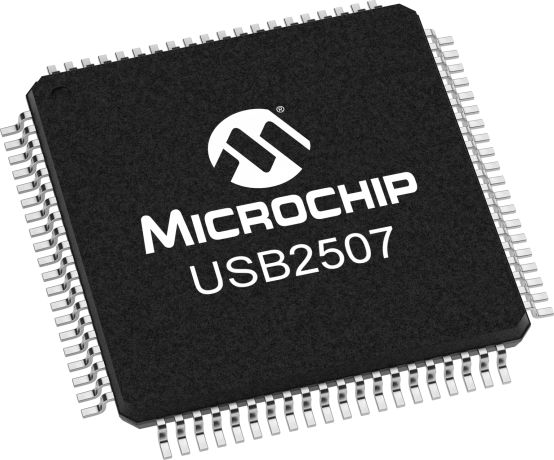

USB2507

Status: Not Recommended for new designs

Features:

  • Compliant with USB 2.0 Specification
  • Hub Controller IC with Seven Downstream Ports
  • MultiTRAK Technology Provides One Transaction Translator Per Port
  • Default Configuration with Pin Selectable Options
  • Flexible OEM Configuration Options
  • 80-Pin TQFP RoHS compliant package
  • Integrated 1.8V regulator
  • Integrated Termination and Pull-Up/Pull-Down Resistors
  • Internal Short Circuit Protection of DP and DM Lines
  • On-Chip Oscillator Uses Low Cost 24MHz Crystal
  • Supports Ganged or Individual Over-Current Protection and Power Control
  • 3.3V I/O with 5V tolerance
  • Customize Vendor ID, Product ID, and Device ID
  • Select whether the hub is part of a compound device (When any downstream port is permanently hardwired to a USB peripheral device, the hub is part of a compound device)
  • Select the presence of a permanently hardwired USB peripheral device on a port by port basis
  • Configure the delay time for filtering the over-current sense inputs
  • Configure the delay time for turning on downstream port power
  • Configure the polarity of down stream port power control signals
  • Indicate the maximum current that the 7-port hub consumes from the USB upstream port
  • Indicate the maximum current required for the hub controller
  • Select Downstream Ports as Non-Removable Ports
  • Select Downstream Ports as Disabled Ports
  • Enable/Disable Downstream Port LED Indicators
  • Select Downstream Port Power Control and Over-Current Detection on a Ganged or Individual Basis
  • Select Downstream Port Power Control Polarity
  • LCD monitors and TVs
  • Multi-function USB peripherals
  • PC mother boards
  • Set-top boxes, DVD players, DVR/PVR
  • Printers and scanners
  • PC media drive bay
  • Portable hub boxes
  • Mobile PC docking
  • Embedded systems
View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Add To Cart

Device Overview

Summary

The USB2507 7-port hub controller is fully compliant with the USB 2.0 Specification and does not require firmware development. When connected to a high-speed USB host, the seven downstream ports can operate at low-speed (1.5Mb/s), full-speed (12Mb/s), or high-speed (480Mb/s). As required by the USB 2.0 Specification, the USB2507 is fully backward compatible with legacy USB full-speed hosts.

A default configuration is available in the USB2507 following a reset. This configuration may be sufficient for some applications when it is desired to save the expense of an EEPROM. The controller may be configured from a microcontroller or an external EEPROM. When using the microcontroller interface, the USB2507 appears as a SMBus slave device. The EEPROM interface supports a 2-wire I2C device.

All required resistors on the USB ports are integrated into the USB2507. This includes all series termination resistors on D+ and D- pins and all required pull-down and pull-up resistors on D+ and D- pins. The over-current sense inputs for the downstream ports have internal pull-up resistors.
*The USBCheck online design review service is subject to Microchip's Program Terms and Conditions and requires a myMicrochip account.

Please consider this device USB2517

Additional Features

    Note: The USB2507 is not recommended for new designs. The USB2517 is the suggested replacement device for this product.

    General Features

    • Compliant with USB 2.0 Specification
    • Hub Controller IC with Seven Downstream Ports
    • MultiTRAK Technology Provides One Transaction Translator Per Port
    • Default Configuration with Pin Selectable Options
    • Flexible OEM Configuration Options
    • 80-Pin TQFP RoHS compliant package

    Hardware Features

    • Integrated 1.8V regulator
    • Integrated Termination and Pull-Up/Pull-Down Resistors
    • Internal Short Circuit Protection of DP and DM Lines
    • On-Chip Oscillator Uses Low Cost 24MHz Crystal
    • Supports Ganged or Individual Over-Current Protection and Power Control
    • 3.3V I/O with 5V tolerance

    OEM Selectable Features

    The 7-Port Hub supports several OEM selectable features:

    • Customize Vendor ID, Product ID, and Device ID
    • Select whether the hub is part of a compound device (When any downstream port is permanently hardwired to a USB peripheral device, the hub is part of a compound device)
    • Select the presence of a permanently hardwired USB peripheral device on a port by port basis
    • Configure the delay time for filtering the over-current sense inputs
    • Configure the delay time for turning on downstream port power
    • Configure the polarity of down stream port power control signals
    • Indicate the maximum current that the 7-port hub consumes from the USB upstream port
    • Indicate the maximum current required for the hub controller

    Pin Selectable Options for Default Configuration

    • Select Downstream Ports as Non-Removable Ports
    • Select Downstream Ports as Disabled Ports
    • Enable/Disable Downstream Port LED Indicators
    • Select Downstream Port Power Control and Over-Current Detection on a Ganged or Individual Basis
    • Select Downstream Port Power Control Polarity

    Applications

    USB 2.0 hub controllers may be used in a number of applications:

    • LCD monitors and TVs
    • Multi-function USB peripherals
    • PC mother boards
    • Set-top boxes, DVD players, DVR/PVR
    • Printers and scanners
    • PC media drive bay
    • Portable hub boxes
    • Mobile PC docking
    • Embedded systems
Parametrics
Name
Value
Upstream Port
USB 2.0
USB Speed
USB 2.0
Downstream Ports
7
MGMT I/F
I2C
ROM I/F
SPI
Op Voltage (V)
3.3
MultiTRAK Tech
Yes
Temp. Range Max.
70

Documents

Jump to:

User Guides


Development tools data is currently unavailable.

Similar Devices

Product
Price 5K
$1.31
$1.03
$1.71
$2.29
$2.52
$2.52
$4.04
$1.55
$1.09

$1.41
$1.97
$1.45
$3.17
$3.02
$1.97
$2.56
$2.63
$1.80
$2.70
$1.80
$2.70
$2.89
$2.85

$3.54
$3.71

$4.17
$4.84
$4.17
$3.10
$3.44
$5.16
$5.16
$5.04
$5.04
$5.40
$5.40
$5.76
$5.16
$5.40
$5.76
$4.78
$5.35
$5.20
$5.07
$5.63
