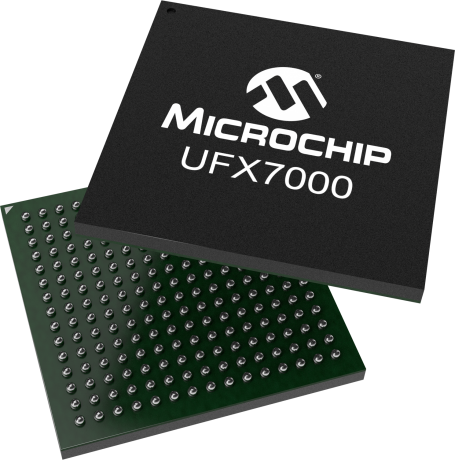

product primary image

UFX7000

Status: Not Recommended for new designs

Features:

  • USB 3.0/2.0 device controllers with integrated USB 3.0/2.0 PHYs
  • Highly-efficient USB graphics engine supports multiple displays on a host
  • HDMI/DVI display connectivity via integrated HDMI/DVI controller/PHY
  • VGA display connectivity via integrated video DAC
  • Support for external display interface controllers via digital RGB interface
  • High-performance DDR2 SDRAM controller with integrated DDR2 PHY
  • Capable of USB self-powered or bus-powered operation
  • Automatic scaling to native resolution of connected displays
  • Supports mirror or extended mode via standard OS display control panel
  • Supports Microsoft''s Windows® 7, Windows Vista® and Windows XP OS''s
  • Fully-compliant with XDDM and WDDM display driver models
  • Optional EEPROM, I2C and TAP controllers
  • Commercial temperature range (0° to 70°C)
  • Optional industrial temperature range (-40° to 85°C) qualified SKUs available
  • 225-ball LFBGA, RoHS-compliant package
  • Multi-monitor Displays
  • USB-to-Video Adapters
  • USB Docking Stations
  • USB Port Replicators
  • USB Zero/Thin Clients
  • USB Monitors/Projectors
  • PC-to-TV Adapters
  • Embedded Systems
View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Add To Cart

Device Overview

Summary

ViewSpan5G is the industry's first USB 3.0 graphics solution that utilizes 5Gbps SuperSpeed USB technology as a display interface. Capable of interfacing with VGA, DVI and HDMI-enabled displays without glue logic, ViewSpan5G brings USB's versatility, expandability and plug-and-play simplicity to the way consumers interact with their PC monitors and TVs. ViewSpan5G offers a system solution consisting of a USB graphics controller (UFX7000) and enabling host software. Powered by innovative content-aware, bandwidth-efficient and resolution-optimized video processing algorithms, ViewSpan5G seamlessly delivers smooth HD video, vivid static images and clear text to virtually any consumer or commercial display, all from a USB cable. ViewSpan5G is fully backward-compatible with USB 2.0 and is capable of supporting full 1080p HD resolution over either a USB SuperSpeed or Hi-Speed link. Microchip also offers the UFX6000, featuring ViewSpan™ technology as a Hi-Speed USB 2.0 option.

Additionally, Microchip's complimentary and confidential USBCheck™ online design review service is available for customers who select the UFX7000 for their application design-in.*

*The USBCheck online design review service is subject to Microchip's Program Terms and Conditions and requires a myMicrochip account..

Additional Features

    Highlights

    • Single-chip SuperSpeed USB 3.0 graphics controller
      • USB 3.0/2.0 device controllers with integrated USB 3.0/2.0 PHYs
    • Highly-efficient USB graphics engine supports multiple displays on a host
    • HDMI/DVI display connectivity via integrated HDMI/DVI controller/PHY
    • VGA display connectivity via integrated video DAC
    • Support for external display interface controllers via digital RGB interface
    • High-performance DDR2 SDRAM controller with integrated DDR2 PHY
    • Capable of USB self-powered or bus-powered operation
    • Automatic scaling to native resolution of connected displays
    • Supports mirror or extended mode via standard OS display control panel
    • Supports Microsoft's Windows® 7, Windows Vista® and Windows XP OS's
    • Fully-compliant with XDDM and WDDM display driver models
    • Optional EEPROM, I2C and TAP controllers
    • Commercial temperature range (0° to 70°C)
    • Optional industrial temperature range (-40° to 85°C) qualified SKUs available
    • 225-ball LFBGA, RoHS-compliant package

    Target Applications

    • Multi-monitor Displays
    • USB-to-Video Adapters
    • USB Docking Stations
    • USB Port Replicators
    • USB Zero/Thin Clients
    • USB Monitors/Projectors
    • PC-to-TV Adapters
    • Embedded Systems
Parametrics
Name
Value
Description
USB 3.0 Graphics Controller
Upstream Port
USB3.0
USB Speed
Super Speed
Downstream Ports
VGA, HDMI, DVI, Digital RGB
GPIOs
22
MGMT I/F
Yes
ROM I/F
Yes
Max Display Resolution
2048x1152
Graphics/Video Performance
Uncompressed or Compressed
VGA
Yes
DVI
Yes
HDMI
Yes
Digitial RGB
Yes
Windows 7 / Vista / XP
Yes
Op Voltage (V)
1.2, 1.8, 3.3
Temp. Range Max.
70

Documents

Jump to:

Development Environment

  • Software Libraries
Software Libraries
UFX Software Developer's Databook

UFX Software Developer's Databook.

Learn More
UFX6000/UFX7000 Embedded FB Kernel Linux Driver

UFX6000/UFX7000 Embedded FB Kernel Linux Driver

Learn More
UFX6000/UFX7000 MAC OS 10.6 and 10.7 Driver

UFX6000/UFX7000 MAC OS 10.6 and 10.7 Driver

Learn More
UFX6000/UFX7000 Windows Device Driver and Utility

UFX6000/UFX7000 Windows Device Driver and Utility

Learn More
UFX6000/UFX7000 Xorg Linux Driver

UFX6000/UFX7000 Xorg Linux Driver

Learn More

Similar Devices

Product
Upstream Port
USB Speed
Temp. Range Max. (C°)
Price 5K
USB 2.0
High Speed
70
$13.48
USB3.0
Super Speed
70
$17.98

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (grams)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
UFX7000-VE
1.500000
225
LFBGA
13x13x1.3
SAC
e8
UFX7000-VE-TR
0.926667
225
LFBGA
13x13x1.3
SAC
e8
To see a complete listing of RoHS data for this device, please Click here
