Status: In Production

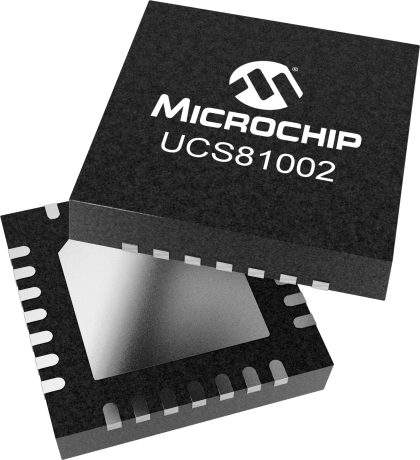

The UCS81002 provides a USB port power switch for precise control of up to 2.5 amperes continuous current with over-current limit (OCL), dynamic thermal management, latch or auto-recovery (low test current) fault handling, selectable active low or high enable, under- and over-voltage lockout, back-drive protection, and backvoltage protection.
Split supply support for VS and VDD is an option for low power in system standby states. This gives battery operated applications, like onboard computers, the ability to
detect attachments from a sleep or off state. After the Attach Detection is flagged, the system can decide to wake up and/or provide charging.
In addition to power switching and current limiting modes, the UCS8100X will automatically charge a wide variety of portable devices, including USB-IF BC1.2, YD/T-1591 (2009), most Apple® and RIM®, and many others. Nine preloaded charger emulation profiles maximize compatibility coverage of peripheral devices. As well, a
customizable charger emulation profile is available to accommodate unique existing and future portable device handshaking / signature requirements.
The UCS81002 also provides current monitoring to allow intelligent management of system power and charge rationing for controlled delivery of current regardless of the
host power state. This is especially important for battery operated applications that want to provide power and do not want to drain the battery excessively.
Development tools data is currently unavailable.
For pricing and availability, contact Microchip Local Sales.
