22V Load Switch for USB PD Protection

UCS3205

22V Load Switch for USB PD Protection

Status: In Production

Features:

  • Integrated bi-directional n-channel load switch, protection, and monitoring capabilities
  • 5A Continuous Current Support
  • USB Power Delivery Support
  • Fast Role Swap Capability that meets the USB Power Delivery Specification Requirements
  • 22V bidirectional blocking capability
View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Add to Cart

Device Overview

Summary

The UCS3205 is 5A, 22V bi-directional load switch with Fast Role Swap (FRS) capability, configurable over-current limiting, configurable auto-recovery or latch off fault response, over-voltage lockout, back-voltage protection, slew rate control, quick output discharge and a scaled analog output of the forward current passing through the switch. In addition, it has a thermal shutdown feature. This device is perfect for USB Power Delivery port management applications, supporting up to 5A at 20V for 100W power delivery specified loads.

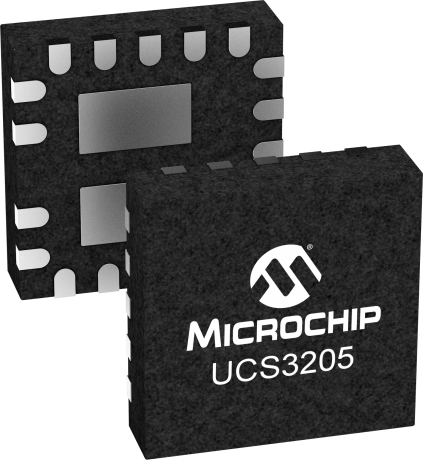

UCS3205 is available in a 19 lead 3x3mm VQFN package with bonds directly under the die for enhanced thermal conduction and reduced switch resistance.

Additional Features
  • Integrated bi-directional n-channel load switch, protection, and monitoring capabilities
  • Bidirectional Load Switch
    • 22V bidirectional blocking capability
    • Supply voltage can be VIN or VOUT for bidirectional support
  • 5A Continuous Current Support
    • 30 mohm Typical On Resistance
    • Configurable Current Limit Threshold with External Resistor
    • Scaled Analog Voltage Output of Current Flowing through Switch for External Measurement
  • USB Power Delivery Support
  • Fast Role Swap Capability that meets the USB Power Delivery Specification Requirements
    • Configurable Quick Output Discharge
    • 20V, 5A support for 100W power delivery loads
  • Robust fault protections
    • Auto-Recovery Fault Handling or Latch Mode
    • Configurable Overvoltage Lockout
    • Back-Voltage Protection
    • Output Voltage Slew Rate Control
    • Configurable Quick Output Discharge
    • Over-temperature Protection (thermal shutdown)
  • Package in 19-Lead 3 x 3 x 0.9 mm VQFN
Parametrics
Name
Value
Description
USB Port Switch (Load Switch)
USB Port Power Switch
1
8 Resistor Set Current Limits
N/A
Interface
N/A
