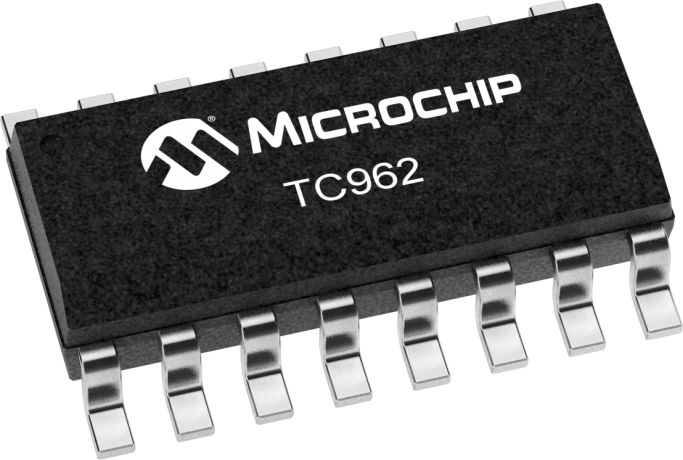

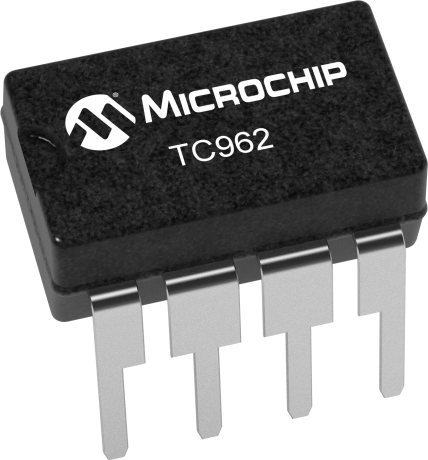

product primary image

TC962

High Current Charge Pump DC-DC Converter

Status: In Production

Features:

  • Pin Compatible With TC7662/ICL7662/SI7661
  • High Output Current ........................ 80mA
  • No External Diodes Required.
  • Wide Operating Range .................. 3V to 18V
  • Low Output Impedance ................... 28Ohm Typ.
  • No Low Voltage Terminal Required
  • Application Zener On Chip
  • OSC Frequency Doubling Pin Option for Smaller Output Capacitors
View More
Overview
Documents
Development Environment
RoHS Information
Buy Now

Device Overview

Summary

The TC962 is an advanced version of the industry-standard 7662 high-voltage DC-to-DC converter. Using improved design techniques and CMOS construction, the TC962 can source as much as 80mA versus the 7662 ’s 20mA capability. As an inverter,the TC962 can put out voltages as high as 18V and as low as 3V without the need for external diodes. The output impedance of the device is a low 28 ? (with the proper capacitors), voltage conversion efficiency is 99.9%, and power conversion efficiency is 97%. The low voltage terminal (pin 6)required in some 7662 applications has been eliminated. Grounding this terminal will double the oscillator frequency from 12kHz to 24kHz. This will allow the use of smaller capacitors for the same output current and ripple, in most applications. Only two external capacitors are required for inverter applications. In the event an external clock is needed to drive the TC962 (such as paralleling),driving this pin directly will cause the internal oscillator to sync to the external clock.

Additional Features
    • Pin Compatible With TC7662/ICL7662/SI7661
    • High Output Current ........................ 80mA
    • No External Diodes Required.
    • Wide Operating Range .................. 3V to 18V
    • Low Output Impedance ................... 28Ohm Typ.
    • No Low Voltage Terminal Required
    • Application Zener On Chip
    • OSC Frequency Doubling Pin Option for Smaller Output Capacitors
Parametrics
Name
Value
Typical Active Output Current (mA)
80
Output Voltage (V)
Vout = -Vin or Vout = 2Vin
Typical Quiescent Current (µA)
190
Input Voltage Range (V)
3 to 18
Operating Temp. Range (°C)
-45 to 85
Device Description
Inverting or Doubling

Documents

Jump to:

Data Sheets

02/05/2013
385KB

Product Selection Tools

Development Environment

  • Demo & Evaluation Boards
Demo & Evaluation Boards
8-Pin SOIC/MSOP/TSSOP/DIP Evaluation Board
8-Pin SOIC/MSOP/TSSOP/DIP Evaluation Board ( SOIC8EV )

This is a blank PCB that allows the operation of Microchip Technology’s 8-pin devices to be easily evaluated. Each device pin is connected to a pull-up resistor, a pull-down resistor, an in-line resistor, and a loading capacitor. The PCB pads allow through hole or surface mount connectors to be installed to ease connection to the board. Additional passive component footprints are on the...

Learn More
Add To Cart

RoHS Information

Part Number
Device Weight
Shipping Weight
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
TC962CPA
0.486700
0.900000
8
PDIP
.300in
Matte Tin
e3
Rohs icon
efup china icon
TC962EPA
0.486700
0.900000
8
PDIP
.300in
Matte Tin
e3
Rohs icon
efup china icon
TC962IJA
1.022410
0.800000
8
CERDIP
.300in
SAC
e1
Rohs icon
efup china icon
TC962COE
0.438000
0.765957
16
SOIC
.300In
Matte Tin
e3
Rohs icon
efup china icon
TC962COE713
0.438000
0.800000
16
SOIC
.300In
Matte Tin
e3
Rohs icon
efup china icon
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
