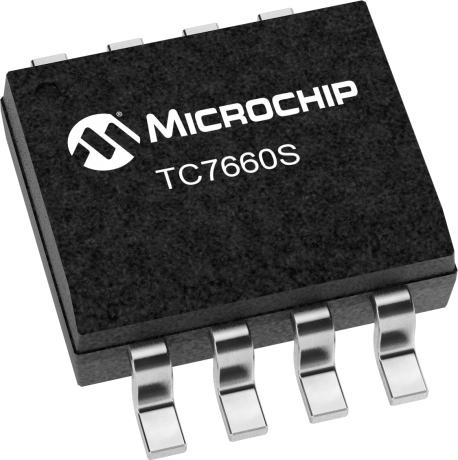

TC7660S

Super Charge Pump DC-DC Voltage Converter

Status: In Production

Features:

  • Oscillator boost from 10kHz to 45kHz
  • Converts +5V Logic Supply to ±5V System
  • Efficient Voltage Conversion: 99.9%
  • Excellent Power Efficiency: 98%
  • Low Power Supply: 80µA @ 5VIN
  • Low Cost and Easy to Use — Only Two External Capacitors Required
  • Improved ESD Protection-Up to 10kV
  • No External Diode Required for High Voltage Operation
View More
Overview
Documents
Development Environment
RoHS Information
Add To Cart

Device Overview

Summary

The TC7660S is a pin-compatible upgrade to the Industry standard TC7660 charge pump voltage converter. It converts a +1.5V to +12V input to a corresponding -1.5V to -12V output using only two low-cost capacitors, eliminating inductors and their associated cost, size and EMI. Added features include an extended supply range to 12V, and a frequency boost pin for higher operating frequency, allowing the use of smaller external capacitors. The on-board oscillator operates at a nominal frequency of 10kHz. Frequency is increased to 45kHz when pin 1 is connected to V+. Operation below 10kHz (for lower supply current applications) is possible by connecting an external capacitor from OSC to ground (with pin 1 open). The TC7660S is available in both 8-pin DIP and 8-pin small outline (SOIC) packages in commercial and extended temperature ranges.

Additional Features
    • Oscillator boost from 10kHz to 45kHz
    • Converts +5V Logic Supply to ±5V System
    • Efficient Voltage Conversion: 99.9%
    • Excellent Power Efficiency: 98%
    • Low Power Supply: 80µA @ 5VIN
    • Low Cost and Easy to Use — Only Two External Capacitors Required
    • Improved ESD Protection-Up to 10kV
    • No External Diode Required for High Voltage Operation
Parametrics
Name
Value
Typical Active Output Current (mA)
20
Output Voltage (V)
Vout = -Vin or Vout = 2Vin
Typical Quiescent Current (µA)
80
Input Voltage Range (V)
1.5 to 12
Device Description
Inverting or Doubling

Documents

Jump to:

Data Sheets

Development Environment

  • Demo & Evaluation Boards
Demo & Evaluation Boards
8-Pin SOIC/MSOP/TSSOP/DIP Evaluation Board
8-Pin SOIC/MSOP/TSSOP/DIP Evaluation Board ( SOIC8EV )

This is a blank PCB that allows the operation of Microchip Technology’s 8-pin devices to be easily evaluated. Each device pin is connected to a pull-up resistor, a pull-down resistor, an in-line resistor, and a loading capacitor. The PCB pads allow through hole or surface mount connectors to be installed to ease connection to the board. Additional passive component footprints are on the...

Learn More
Add To Cart
