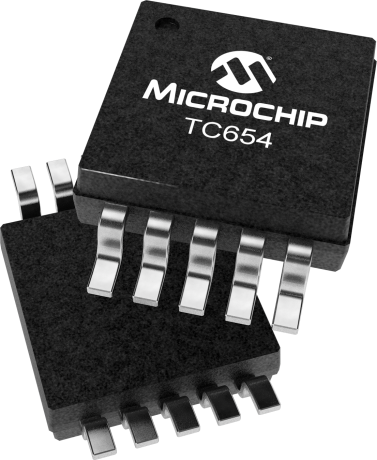

product primary image

TC654

Status: In Production

Features:

  • Temperature Proportional Fan Speed for Acoustic Control and Longer Fan Life
  • FanSense™ Protects Against Fan Failure
  • Provides RPM Data
  • 2-wire SMBus Compatible Interface
  • 3.0V to 5.5V Supply Range
  • Fan Voltage Independent of Supply Voltage – Supports Any Fan Voltage
  • Supports Low Cost NTC/PTC Thermistors
View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Buy Now

Device Overview

Summary

The TC654 is a dual PWM mode fan speed controller with FanSense™ TM technology for use with brush-less DC motors. The device allows temperature proportional speed control and therefore accomplishes lower acoustic fan noise and longer fan life. The TC654 reads the voltage provided by an external ther-mistor (or voltage output temperature sensor) and adjusts a 30% to 100% PWM duty cycle output to the fan with respect to the input temperature voltage. The PWM duty cycle can also be programmed via SMBus to allow fan speed control without the need of an external thermistor.

In normal fan operation, pulse trains are present at the SENSE pin. These pulses are used to calculate the fan RPM. The fan RPM data is used to detect a worn out, stalled, open or unconnected fan. An RPM level below the user-programmable threshold causes the TC654 to assert a logic low alert signal (FAULT). Thedefault value is 500RPM. The TC654 consumes only 0.3mA during operation and can also enter a low-power shutdown mode by setting the appropriate bit in the configuration register.

Additional Features
    • Temperature Proportional Fan Speed for Acoustic Control and Longer Fan Life
    • FanSense™ Protects Against Fan Failure
    • Provides RPM Data
    • 2-wire SMBus Compatible Interface
    • 3.0V to 5.5V Supply Range
    • Fan Voltage Independent of Supply Voltage – Supports Any Fan Voltage
    • Supports Low Cost NTC/PTC Thermistors
Parametrics
Name
Value
Device Description
Programmable Dual Fan Manager
Typical Accuracy (°C)
Depends on external thermistor
SM Bus
yes
Predictive Fan Fault
yes
Max. Supply Current (µA)
320
Max. Accuracy @ 25°C (°C)
Depends on external thermistor
Fan Sense
Yes
External Temp Input
Yes
High/Low PWM Freq
Low
Temp Range (°C)
-40 to +85
Vcc Range (V)
+3.0 to +5.5

Documents

Jump to:

Data Sheet

08/07/2014
571KB

Product Line Card


Development tools data is currently unavailable.

Similar Devices

Product
Description
Typical Accuracy (º)
Temp Range
Price 5K

±0.5
-40 - +125
$0.79
Fan Manager
Depends on external thermistor
-40 - +85
$0.94
Fan Manager
Depends on external thermistor
-40 - +85
$0.84
Fan Manager
Depends on external thermistor
-40 - +85
$0.94
Fan Manager
Depends on external thermistor
-40 - +85
$0.84
Fan Manager
Depends on external thermistor
-40 - +85
$0.94
Fan Manager
Depends on external thermistor
-40 - +85
$0.84
Fan Manager
Depends on external thermistor
-40 - +85
$0.85
Fan Manager
Depends on External Thermistor
-40 - +85
$0.79
Fan Manager
Depends on external thermistor
-40 - +85
$0.94
Fan Manager
Depends on external thermistor
-40 - +85
$0.84
Fan Manager
1
-40 - +125
$1.26
Fan Manager
1
-40 - +125
$1.08
Fan Manager
1
-40 - +125
$1.36
Fan Manager
1
-40 - 125
$1.36
Dual SMBus Fan Manager
Depends on external thermistor
-40 - +85
$1.43
Dual SMBus Fan Manager
Depends on external thermistor
-40 - +85
$1.53
Single SMBus Fan Manager
Depends on external thermistor
-40 - +85
$1.27
Single SMBus Fan Manager
Depends on external thermistor
-40 - +85
$1.31
Predictive Fan Fault Detector
N/A
-40 - +85
$0.94

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (grams)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
TC654EUN
0.023200
0.060000
10
MSOP
3x3mm
Matte Tin
e3
TC654EUNTR
0.023200
0.200000
10
MSOP
3x3mm
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
