TC514

Status: In Production

Features:

  • Precision (up to 17 Bits) A/D Converter Front End
  • 3-Pin Control Interface to Microprocessor
  • Flexible: Ability to Trade-Off Conversion Speed for Resolution
  • Single Supply Operation
  • 4 Input, Differential Analog MUX
  • Automatic Input Voltage Polarity Detection
  • Low Power Dissipation: 18mW
  • Directly Accepts Bipolar and Differential Input Signals
View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Buy Now

Device Overview

Summary

The TC514 family is a precision analog front end dual slope A/D converter having a maximum resolution of 17 bits plus sign. The device contains the integrator, zero crossing comparator and processor interface logic. The TC514 has improved linearity allowing it to operate to a maximum resolution of 17 bits and adds both a negative power supply converter and a 4 input differential analog multiplexer. The TC514 offers superior 50Hz/60Hz noise rejection, low power operation, minimum I/O connections, and low input bias currents.

Additional Features
    • Precision (up to 17 Bits) A/D Converter Front End
    • 3-Pin Control Interface to Microprocessor
    • Flexible: Ability to Trade-Off Conversion Speed for Resolution
    • Single Supply Operation
    • 4 Input, Differential Analog MUX
    • Automatic Input Voltage Polarity Detection
    • Low Power Dissipation: 18mW
    • Directly Accepts Bipolar and Differential Input Signals
Parametrics
Name
Value
Input Voltage Range (V)
-1.5 to +1.5
Sampling Rate
4 to 10
Programmable resolution/conversion time
Yes
Input Channels
4
Charge pump (-V) output pin
Yes
Resolution
Up to 17 bits
Sampling Rate (Conv/sec)
4 to 10
Interface
3-wire

Documents

Jump to:

Development tools data is currently unavailable.

Similar Devices

Product
Supply Voltage Range (V)
Input Voltage Range (V)
Resolution
Price 5K

-1.5 to +1.5
Up to 16 bits
$1.62

-1.5 to +1.5
Up to 17 bits
$2.25

-1.5 to +1.5
Up to 17 bits
$2.29

-1.5 to +1.5
Up to 17 bits
$2.85
4.5 - 5.5
Vss + 1.5 to Vdd - 1.5
Up to 17 bits
$3.43
4.5 - 5.5
-1.5 to +1.5
12 bits plus sign bit
$3.93

-1.5 to +1.5
12 bits plus sign bit
$4.64

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (grams)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
TC514COI
0.770400
1.370370
28

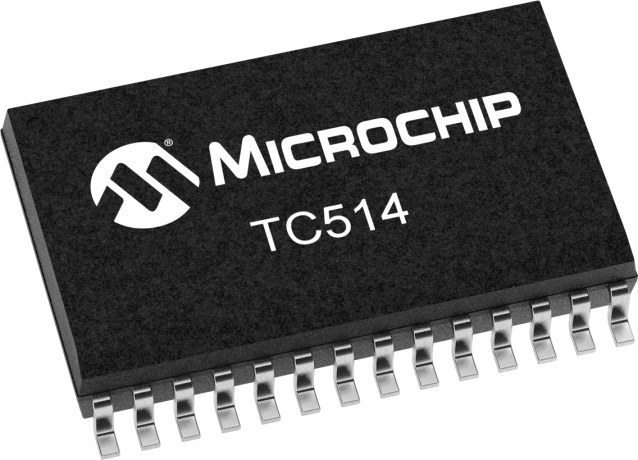

SOIC
.300in
Matte Tin
e3
TC514COI713
0.770400
1.152500
28
SOIC
.300in
Matte Tin
e3
TC514CPJ
2.087500
3.733333
28

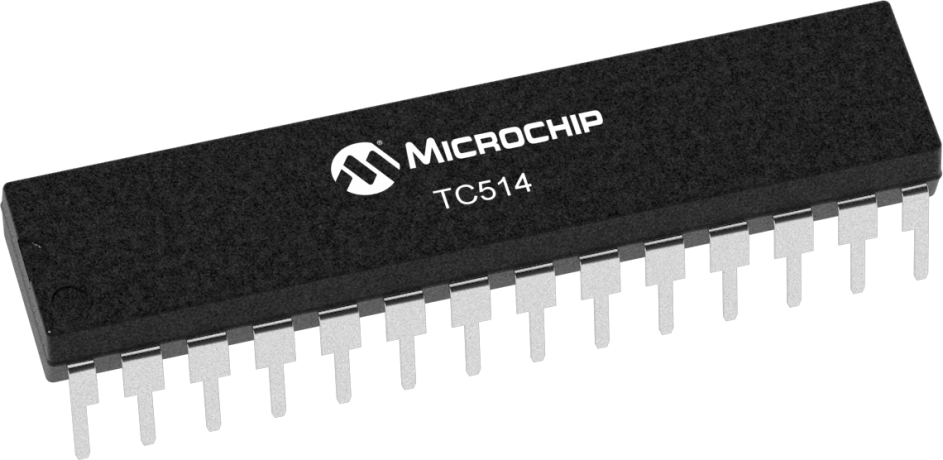

SPDIP
.300in
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
