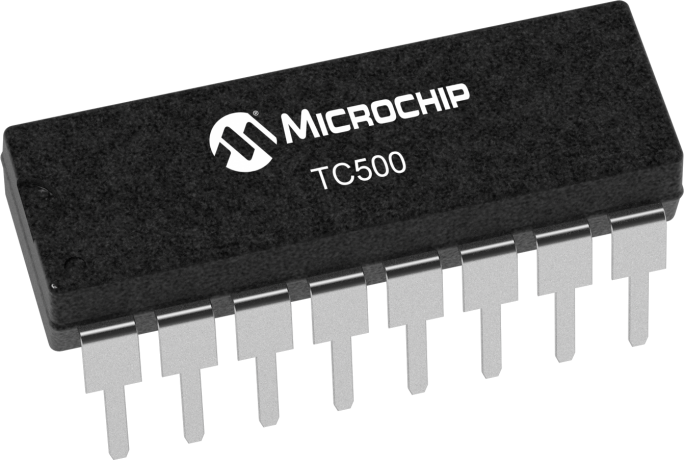

TC500

Status: In Production

Features:

  • Precision (up to 16 Bits) A/D Converter Front End
  • 3-Pin Control Interface to Microprocessor
  • Flexible: Ability to Trade-Off Conversion Speed for Resolution
  • Automatic Input Voltage Polarity Detection
  • Low Power Dissipation: 10mW
  • Wide Analog Input Range: ±4.2V
  • Directly Accepts Bipolar and Differential Input Signals
View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Buy Now

Device Overview

Summary

The TC500 is a precision analog front end dual slope A/D converter having a maximum resolution of 16 bits plus sign. The device contains the integrator, zero crossing comparator and processor interface logic, and requires both positive and negative power supplies. The TC500 offers high resolution (up to 16 bits), superior 50Hz/60Hz noise rejection, low power operation, minimum I/O connections, and low input bias currents.

Additional Features
    • Precision (up to 16 Bits) A/D Converter Front End
    • 3-Pin Control Interface to Microprocessor
    • Flexible: Ability to Trade-Off Conversion Speed for Resolution
    • Automatic Input Voltage Polarity Detection
    • Low Power Dissipation: 10mW
    • Wide Analog Input Range: ±4.2V
    • Directly Accepts Bipolar and Differential Input Signals
Parametrics
Name
Value
Input Voltage Range (V)
-1.5 to +1.5
Sampling Rate
4 to 10
Programmable resolution/conversion time
Yes
Input Channels
1
Resolution
Up to 16 bits
Sampling Rate (Conv/sec)
4 to 10
Interface
3-wire

Documents

Jump to:

Product Line Card


Development tools data is currently unavailable.

Similar Devices

Product
Supply Voltage Range (V)
Input Voltage Range (V)
Resolution
Price 5K

-1.5 to +1.5
Up to 16 bits
$1.62

-1.5 to +1.5
Up to 17 bits
$2.25

-1.5 to +1.5
Up to 17 bits
$2.29

-1.5 to +1.5
Up to 17 bits
$2.85
4.5 - 5.5
Vss + 1.5 to Vdd - 1.5
Up to 17 bits
$3.43
4.5 - 5.5
-1.5 to +1.5
12 bits plus sign bit
$3.93

-1.5 to +1.5
12 bits plus sign bit
$4.64
