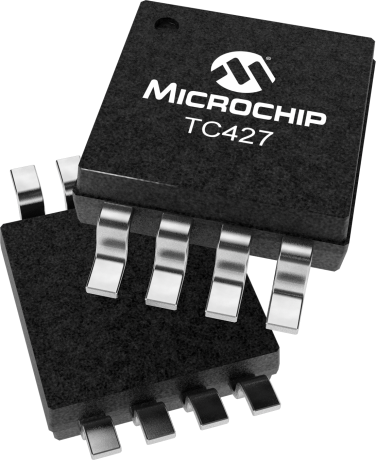

product primary image

TC427

1.5A Dual Non-Inverting High-Speed MOSFET Driver

Status: In Production

Features:

  • High-Speed Switching (CL = 1000pF): 30nsec
  • High Peak Output Current: 1.5A
  • High Output Voltage Swing: VDD – 25mV GND +25mV
  • Low Input Current (Logic ''0'' or ''1''): 1mA
  • TTL/CMOS Input Compatible
  • Available in Inverting and Noninverting Configurations
  • Wide Operating Supply Voltage: 4.5V to 18V
  • Inputs Low: 0.4mA
  • Inputs High: 8mA
  • Single Supply Operation
  • Low Output Impedance: 6Ω
  • Pinout Equivalent of DS0026 and MMH0026
  • Latch-Up Resistant: Withstands > 500mA Reverse Current
View More
Overview
Documents
Development Environment
RoHS Information
Buy Now

Device Overview

Summary

The TC426/TC427/TC428 are dual CMOS high-speed drivers. A TTL/CMOS input voltage level is translated into a rail-to-rail output voltage level swing. The CMOS output is within 25mV of ground or positive supply. The low impedance, high-current driver outputs swing a 1000pF load 18V in 30nsec. The unique current and voltage drive qualities make the TC426/TC427/TC428 ideal power MOSFET drivers, line drivers, and DC-to-DC converter building blocks. Input logic signals may equal the power supply voltage. Input current is a low 1A, making direct interface to CMOS/bipolar switch-mode power supply control ICs possible, as well as open-collector analog comparators. Quiescent power supply current is 8mA maximum. The TC426 requires 1/5 the current of the pin-compatible bipolar DS0026 device. This is important in DC-to-DC converter applications with power efficiency constraints and high-frequency switch-mode power supply applications. Quiescent current is typically 6mA when driving a 1000pF load 18V at 100kHz. The inverting TC426 driver is pin-compatible with the bipolar DS0026 and MMH0026 devices. The TC427 is noninverting; the TC428 contains an inverting and non-inverting driver. Other pin compatible driver families are the TC1426/27/28, TC4426/27/28, and TC4426A/27A/28A.

For product comparison, please consider: TC4427A

Additional Features
    • High-Speed Switching (CL = 1000pF): 30nsec
    • High Peak Output Current: 1.5A
    • High Output Voltage Swing: VDD – 25mV GND +25mV
    • Low Input Current (Logic '0' or '1'): 1mA
    • TTL/CMOS Input Compatible
    • Available in Inverting and Noninverting Configurations
    • Wide Operating Supply Voltage: 4.5V to 18V
    • Current Consumption:
      • Inputs Low: 0.4mA
      • Inputs High: 8mA
    • Single Supply Operation
    • Low Output Impedance: 6Ω
    • Pinout Equivalent of DS0026 and MMH0026
    • Latch-Up Resistant: Withstands > 500mA Reverse Current
Parametrics
Name
Value
MOSFET Driver Type
Low Side
Driver Type
Dual
Configuration
Non-inverting
Peak Output Current (source/sink, A)
1.5/1.5
Output Resistance (source/sink, Ω)
15/10
Maximum Supply Voltage (V)
18
Propagation Delay (Td1/Td2, ns)
50/75
Rise/Fall Time (Tr/Tf, ns)
30/30
Capacitive Load Drive
1000pF in 30nsec
Features
lease consider: TC4427A

Documents

Jump to:

Data Sheets

06/23/2015
499KB

Development Environment

  • Demo & Evaluation Boards
Demo & Evaluation Boards
8-Pin SOIC/MSOP/TSSOP/DIP Evaluation Board
8-Pin SOIC/MSOP/TSSOP/DIP Evaluation Board ( SOIC8EV )

This is a blank PCB that allows the operation of Microchip Technology’s 8-pin devices to be easily evaluated. Each device pin is connected to a pull-up resistor, a pull-down resistor, an in-line resistor, and a loading capacitor. The PCB pads allow through hole or surface mount connectors to be installed to ease connection to the board. Additional passive component footprints are on the...

Learn More
Add To Cart

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (grams)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
TC427CUA
0.025600
0.070000
8
MSOP
3x3mm
Matte Tin
e3
TC427CUA713
0.025600
0.215600
8
MSOP
3x3mm
Matte Tin
e3
TC427EUA
0.025600
0.070000
8
MSOP
3x3mm
Matte Tin
e3
TC427EUA713
0.025600
0.215600
8
MSOP
3x3mm
Matte Tin
e3
TC427COA
0.078000
0.250000
8
SOIC
.150In(3.90mm)
Matte Tin
e3
TC427COA713
0.078000
0.230303
8
SOIC
.150In(3.90mm)
Matte Tin
e3
TC427EOA
0.078000
0.250000
8
SOIC
.150In(3.90mm)
Matte Tin
e3
TC427EOA713
0.078000
0.230303
8
SOIC
.150In(3.90mm)
Matte Tin
e3
TC427VOA
0.078000
0.250000
8
SOIC
.150In(3.90mm)
Matte Tin
e3
TC427VOA713
0.078000
0.230303
8
SOIC
.150In(3.90mm)
Matte Tin
e3
TC427IJA
1.022410
0.800000
8
CERDIP
.300in
SAC
e1
TC427MJA
1.022410
0.800000
8
CERDIP
.300in
SAC
e1
TC427CPA
0.486700
0.900000
8
PDIP
.300in
Matte Tin
e3
TC427EPA
0.486700
0.900000
8
PDIP
.300in
Matte Tin
e3
TC427VPA
0.486700
0.900000
8
PDIP
.300in
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
