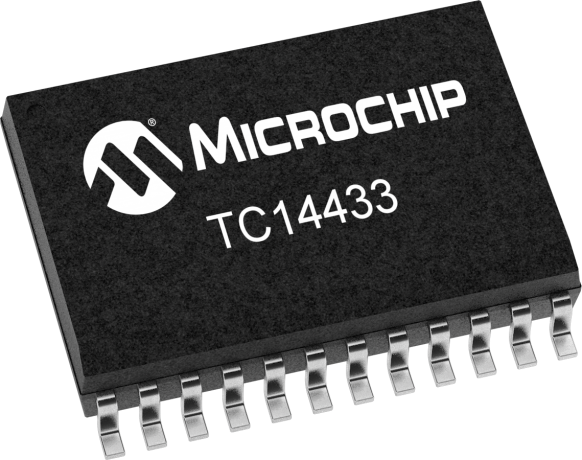

product primary image

TC14433

Status: In Production

Features:

  • Accuracy: ±0.05% of Reading ±1 Count
  • Two Voltage Ranges: 1.999V and 199.9 mV
  • Up to 25 Conversions per Second
  • Zin > 1000M Ohms
  • Single Positive Voltage Reference
  • Auto-Polarity and Auto-Zero
  • Overrange and Underrange Signals Available
  • Operates in Auto-Ranging Circuits
  • Uses On-Chip System Clock or External Clock
View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Buy Now

Device Overview

Summary

The TC14433 is a low power, high-performance, monolithic CMOS 3½ digit A/D converter. The TC14433 combines both analog and digital circuits on a single IC, thus minimizing the number of external components. This dual-slope A/D converter provides automatic polarity and zero correction with the addition of two external resistors and two capacitors. The full-scale voltage range of this ratiometric IC extends from 199.9 millivolts to 1.999 volts. The TC14433 can operate over a wide range of power supply voltages, including batteries and standard 5-volt supplies.

Additional Features
    • Accuracy: ±0.05% of Reading ±1 Count
    • Two Voltage Ranges: 1.999V and 199.9 mV
    • Up to 25 Conversions per Second
    • Zin > 1000M Ohms
    • Single Positive Voltage Reference
    • Auto-Polarity and Auto-Zero
    • Overrange and Underrange Signals Available
    • Operates in Auto-Ranging Circuits
    • Uses On-Chip System Clock or External Clock
Parametrics
Name
Value
Supply Voltage (V)
4.5 to ±8
Input Voltage Range (V)
199.9 mV to 1.999
DMM
Yes
Max Power (mW)
20
Resolution (Digits)
3
Resolution (Counts)
2000
Interface
MUXed BCD
Temp Range (°C)
-40 to +85
Device Description
BCD A/D

Documents

Jump to:

Data Sheet

Product Line Card

Product Line Documents


Development tools data is currently unavailable.

Similar Devices

Product
Description
Supply Voltage (V)
Resolution Counts
Interface
Price 5K
BCD A/D
4.5 to ±8
2000
MUXed BCD
$3.41
BCD A/D
4.5 to ±8
2000
MUXed BCD
$3.57
Binary A/D
5
32768
8-bit Parallel
$15.38

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
TC14433AELI
1.142500
0.435897
28
PLCC
11.5x11.5x4.4mm
Matte Tin
e3
TC14433AELI713
1.142500
1.733333
28
PLCC
11.5x11.5x4.4mm
Matte Tin
e3
TC14433ELI
1.142500
0.435897
28
PLCC
11.5x11.5x4.4mm
Matte Tin
e3
TC14433ELI713
1.142500
1.733333
28
PLCC
11.5x11.5x4.4mm
Matte Tin
e3
TC14433COG
0.662000
1.645161
24
SOIC
.300in
Matte Tin
e3
TC14433AEPG
1.850700
3.333333
24
PDIP
.600in
Matte Tin
e3
TC14433EPG
1.850700
3.333333
24
PDIP
.600in
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
