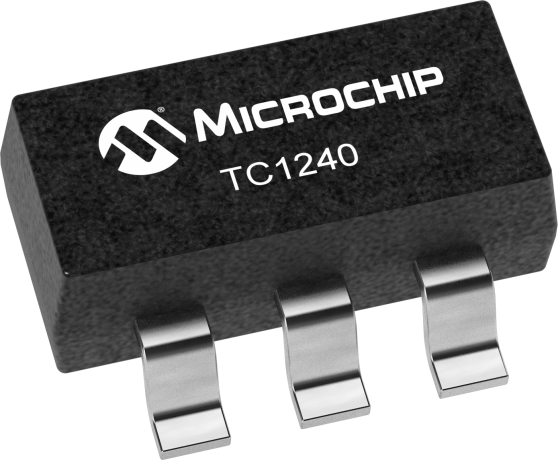

product primary image

TC1240

Positive Doubling Charge Pumps with Shutdown

Status: In Production

Features:

  • >99% Typical Voltage Conversion Efficiency
  • Voltage Doubling
  • Low Output Resistance (17Ohms Typical)
  • Only Two External Capacitors Required
  • Consumes 180µA (Typical) in Active Mode
  • Power-Saving Shutdown Mode (1µA Maximum)
  • Fully Compliant with 1.8V Logic Sytems
View More
Overview
Documents
Development Environment
RoHS Information
Buy Now

Device Overview

Summary

The TC1240 is a doubling CMOS charge-pump voltage converter in a small 6-Pin SOT-23A package. TC1240 doubles an input voltage which can range from +2.5V to +4.0V. Conversion efficiency is typically >99%. Internal oscillator frequency is 160kHz for the TC1240. The TC1240 has an active high shutdown which limits the current consumption of the device to less than 1µA. External component requirement is only two capacitors for standard voltage doubler applications. All other circuitry, including control, oscillator, power MOSFETs are integrated on-chip. Typical supply current is 180µA and the device is available in a 6-Pin SOT-23A surface mount package.

Additional Features
    • >99% Typical Voltage Conversion Efficiency
    • Voltage Doubling
    • Low Output Resistance (17Ohms Typical)
    • Only Two External Capacitors Required
    • Consumes 180µA (Typical) in Active Mode
    • Power-Saving Shutdown Mode (1µA Maximum)
    • Fully Compliant with 1.8V Logic Sytems
Parametrics
Name
Value
Typical Active Output Current (mA)
40
Output Voltage (V)
Vout = 2Vin
Typical Quiescent Current (µA)
180
Input Voltage Range (V)
2.5 to 4.0
Operating Temp. Range (°C)
-45 to 85
Device Description
Inverting or Doubling

Documents

Jump to:

Data Sheet

02/05/2013
234KB

Product Line Card

Development Environment

  • Demo & Evaluation Boards
Demo & Evaluation Boards
Voltage Supervisor SOT23-5/6 Evaluation Board
Voltage Supervisor SOT23-5/6 Evaluation Board ( VSUPEV2 )

This Blank PCB allows the system designer to quickly evaluate the operation of Microchip Technology’s Voltage Supervisors and Voltage Detectors in the SOT-23-5 (5-pin) and SOT-23-6 (6-pin) packages. This PCB supports many Microchip device families, including the Nonvolitile Digital Potentiometer and PIC10F2xx devices.

Learn More
Add To Cart

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
TC1240AECHTR
0.017000
0.046667
6
SOT-23
-
Matte Tin
e3
TC1240ECHTR
0.017000
0.046667
6
SOT-23
-
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
