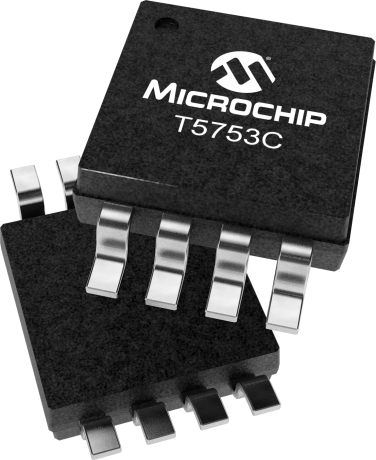

product primary image

T5753C

Status: In Production

Overview
Documents
Development Environment
RoHS Information
Add to Cart

Device Overview

Summary

High output power PLL UHF ASK/FSK transmitter device developed for low-cost RF transmission systems at data rates up to 32 kBaud. The device features high output power (5.5 dBm) with low supply current (8.5 mA). The transmitting frequency range is 310MHz to 330MHz. FSK modulation is achieved by connecting an additional capacitor between the XTAL load capacitor and the open drain output of the modulating microcontroller. The devices suppots a supply voltage 2.0V to 4.0V in the temperature range of -40°C to +85°C/+125??C, ideal for tire pressure monitoring (TPM) applications.

Parametrics
Name
Value
Automotive Capable
Yes

Documents

Jump to:

Brochures


Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Dimension
Solder Composition
JEDEC Indicator
RoHS
China EFUP
T5753C-6AQJ-66
0.025600
0.215600
8
MSOP
3x3mm
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
