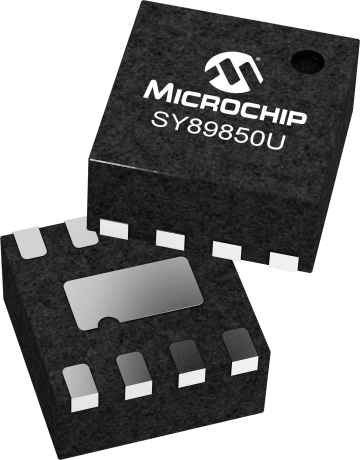

SY89850U

Status: In Production

Features:

  • DC-to >3.2Gbps data rate throughput
  • 4GHz clock fMAX (typ.)
  • <280ps In-to-Out tpd
  • <160ps tr/tf
  • Low power: 50mW (2.5V typ.)
  • <1psRMS random jitter
  • <10psPP deterministic jitter
  • <10psPP total jitter (clock)
  • Unique input termination and VTpin accepts DC- and AC-coupled inputs (CML, PECL, LVDS)
  • Typical 800mV (100k) LVPECL Output Swing
  • Power supply 2.5V ±5% or 3.3V ±10%
  • Industrial temperature range -40°C to +85°C
  • Available in ultra-small (2mm x 2mm) 8-pin DFN package
View More
Overview
Documents
Development Environment
RoHS Information
Add To Cart

Device Overview

Summary

The SY89850U is a 2.5V/3.3V precision, high-speed, differential receiver capable of handling clocks up to 4GHz and data streams up to 3.2Gbps.The differential input includes Micrel's unique, 3-pin input termination architecture that allows users to interface to any differential signal (AC or DC-coupled) as small as 100mV (200mVPP) without any level shifting or termination resistor networks in the signal path. The outputs are 800mV LVPECL, with extremely fast rise/fall times guaranteed to be less than 160ps.The SY89850U operates from a 2.5V ±5% supply or a 3.3V ±10% supply and is guaranteed over the full industrial temperature range of -40°C to +85°C. The SY89850U is part of Micrel's high-speed, Precision Edge® product line.

Additional Features
    • Guaranteed AC performance over temperature and supply voltage:
      • DC-to >3.2Gbps data rate throughput
      • 4GHz clock fMAX (typ.)
      • <280ps In-to-Out tpd
      • <160ps tr/tf
      • Low power: 50mW (2.5V typ.)
      • Ultra-low jitter design:
        • <1psRMS random jitter
    • <10psPP deterministic jitter
    • <10psPP total jitter (clock)
    • Unique input termination and VTpin accepts DC- and AC-coupled inputs (CML, PECL, LVDS)
    • Typical 800mV (100k) LVPECL Output Swing
    • Power supply 2.5V ±5% or 3.3V ±10%
    • Industrial temperature range -40°C to +85°C
    • Available in ultra-small (2mm x 2mm) 8-pin DFN package
Parametrics
Name
Value
Product Type
Fanout & Buffer and Drivers
Description
Low Power
Input
CML/PECL/LVDS
Output
LVPECL
Supply Voltage
2.5/3.3V
Max Freq (GHz)
3.2
Max Data (Gbps)
4
Icc (mA)
30
OE
False
RPE
False
FSI
False
Input Mux
False
Input EQ
False

Documents

Jump to:

Data Sheets


547KB

User Guides


Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
SY89850UMG-TR
0.010900
0.339227
8
VDFN
2x2x0.9mm
NiPdAu
e4
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
