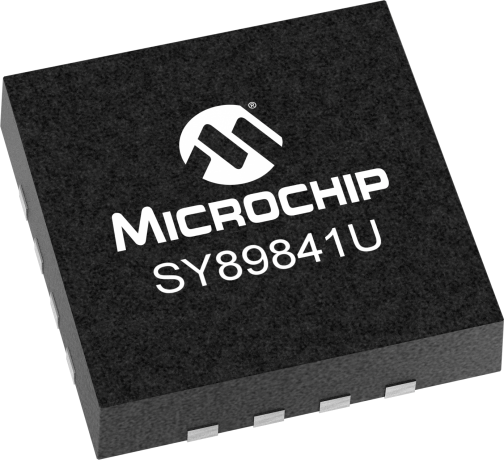

SY89841U

Status: In Production

Features:

  • Selects between two sources, and provides a glitch-free, stable LVDS output
  • wide operating frequency: 1kHz to >1.5GHz
  • <870ps In-to-Out tpd
  • <150ps tr/tf
  • Unique patent-pending input isolation design minimizes crosstalk
  • Fail-safe input prevents oscillations
  • <1psRMS random jitter
  • <1psRMS cycle-to-cycle jitter
  • <10psPP total jitter (clock)
  • <0.7psRMS MUX crosstalk induced jitter
  • Unique patent-pending input termination and VT pin accepts DC-coupled and AC-coupled inputs (CML, PECL, LVDS)
  • 350mV LVDS output swing
  • 2.5V +5% power supply
  • -40°C to +85°C industrial temperature range
  • Available in 16-pin (3mm x 3mm) MLF® package
View More
Overview
Documents
Development Environment
RoHS Information
Add To Cart

Device Overview

Summary

The SY89841U is a low jitter LVDS, 2:1 input multiplexer (MUX) optimized for redundant source switchover applications. Unlike standard multiplexers, the SY89841U unique 2:1 Runt Pulse Eliminator (RPE) MUX prevents any short cycles or “runt" pulses during switchover. In addition, a unique Fail-safe Input protection prevents metastable conditions when the selected input clock fails to a DC voltage (voltage between the pins of the differential input drops below 100mV).The differential input includes Micrel's unique, 3-pin input termination architecture that allows customers to interface to any differential signal (AC- or DC-coupled) as small as 100mV (200mVpp) without any level shifting or termination resistor networks in the signal path. The outputs are 350mV, LVDS with fast rise/fall times guaranteed to be less than 150ps.The SY89841U operates from a 2.5V ±5% supply and is guaranteed over the full industrial temperature range of -40°C to +85°C. The SY89841U is part of Micrel's high-speed, Precision Edge® product line.

Additional Features
    • Selects between two sources, and provides a glitch-free, stable LVDS output
    • Guaranteed AC performance over temperature and supply voltage:
      • wide operating frequency: 1kHz to >1.5GHz
      • <870ps In-to-Out tpd
      • <150ps tr/tf
    • Unique patent-pending input isolation design minimizes crosstalk
    • Fail-safe input prevents oscillations
    • Ultra-low jitter design:
      • <1psRMS random jitter
    • <1psRMS cycle-to-cycle jitter
    • <10psPP total jitter (clock)
    • <0.7psRMS MUX crosstalk induced jitter
    • Unique patent-pending input termination and VT pin accepts DC-coupled and AC-coupled inputs (CML, PECL, LVDS)
    • 350mV LVDS output swing
    • 2.5V +5% power supply
    • -40°C to +85°C industrial temperature range
    • Available in 16-pin (3mm x 3mm) MLF® package
Parametrics
Name
Value
Product Type
Multiplexers
Description
2:01
Input
ANY
Output
LVDS
Supply Voltage
2.5V
Max Freq (GHz)
1.5
Max Prop Delay (ps)
870
Icc (mA)
85
OE
False
RPE
True
FSI
True
Input Mux
False
Input EQ
False
Channels
Single
Output Type
LVDS
Output Voltage
2.5V

Documents

Jump to:

Data Sheets


1162KB

User Guides


Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
SY89841UMG-TR
0.021300
0.801700
16
VQFN
3x3x1.00mm
NiPdAu
e4
SY89841UMG
0.021300
0.050000
16
VQFN
3x3x1.00mm
NiPdAu
e4
To see a complete listing of RoHS data for this device, please Click here
