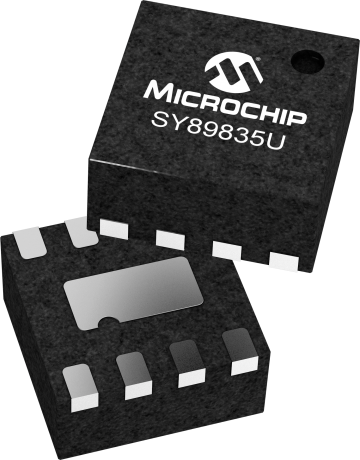

SY89835U

Status: In Production

Features:

  • DC-to >3.2Gbps throughput
  • 210ps typical propagation delay (IN-to-Q)
  • <20ps within-device skew
  • <150ps rise/fall times
  • Prevents outputs from oscillating
  • Ultra-low jitter design
  • <1psRMS cycle-to-cycle jitter
  • <10psPP total jitter
  • <1psRMS random jitter
  • <10psPP deterministic jitter
  • High-speed LVDS outputs
  • 2.5V ±5% power supply operation
  • Industrial temperature range: -40°C to +85°C
  • Available in 8-pin (2mm x 2mm) MLF® package
View More
Overview
Documents
Development Environment
RoHS Information
Add To Cart

Device Overview

Summary

The SY89835U is a 2.5V, high-speed 2GHz differential Low Voltage Differential Swing (LVDS) 1:2 fanout buffer optimized for ultra-low skew applications. Within device skew is guaranteed to be less than 20ps over supply voltage and temperature. A unique Fail-Safe Input (FSI) protection prevents metastable conditions when no signal is present or when the selected input clock fails to a DC voltage (voltage between the pins of the differential input drops sufficiently below 100 mV).The SY89835U is part of Micrel's high-speed clock synchronization family. For applications that require a different I/O combination, consult Micrel's web site, and choose from a comprehensive product line of highspeed, low-skew fanout buffers, translators and clock generators.

Additional Features
    • Guaranteed AC performance over temperature and voltage:
      • DC-to >3.2Gbps throughput
      • 210ps typical propagation delay (IN-to-Q)
      • <20ps within-device skew
      • <150ps rise/fall times
    • Fail Safe Input
      • Prevents outputs from oscillating
    • Ultra-low jitter design
      • <1psRMS cycle-to-cycle jitter
      • <10psPP total jitter
      • <1psRMS random jitter
      • <10psPP deterministic jitter
    • High-speed LVDS outputs
    • 2.5V ±5% power supply operation
    • Industrial temperature range: -40°C to +85°C
    • Available in 8-pin (2mm x 2mm) MLF® package
Parametrics
Name
Value
Product Type
Fanout & Buffer and Drivers
Description
Buffer
Input
LVDS
Output
LVDS
Supply Voltage
2.5
Max Freq (GHz)
3.2
Max Data (Gbps)
2
Max Prop Delay (ps)
500
Icc (mA)
70
Max Within Device Skew (ps)
20
OE
False
RPE
False
FSI
True
Input Mux
False
Input EQ
False
Output Type
LVDS

Documents

Jump to:

Data Sheets


367KB

User Guides


Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (grams)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
SY89835UMG-TR
0.010900
0.339227
8
VDFN
2x2x0.9mm
NiPdAu
e4
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
