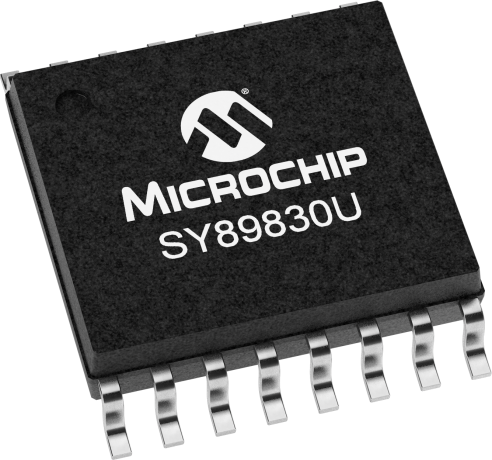

product primary image

SY89830U

Status: In Production

Features:

  • >2.5GHz fMAX
  • <25ps within-device skew
  • <225ps tr/tf time
  • <450ps prop delay
  • <1psRMS cycle-to-cycle jitter
  • <15psPP total jitter
  • 2:1 Differential MUX input
  • Flexible supply voltage: 2.5V/3.3V/5V
  • Wide operating temperature range: -40°C to +85°C
  • 100K ECL compatible outputs
  • Inputs accept PECL/LVPECL/ECL/HSTL logic levels
  • Available in a 16-pin TSSOP package
View More
Overview
Documents
Development Environment
RoHS Information
Add to Cart

Device Overview

Summary

The SY89830U is a high-speed, 2.5GHz differential PECL 1:4 fanout buffer optimized for ultra-low skew applications. Within device skew is guaranteed to be less than 25ps over temperature and supply voltage. The wide supply voltage operation allows this fanout buffer to operate in 2.5V, 3.3V, and 5V systems.The SY89830U features a 2:1 input MUX, making it an ideal solution for redundant clock switchover applications.

If only one input pair is used, the other pair may be left floating. In addition, this device includes a synchronous enable pin that forces the outputs into a fixed logic state. Enable or disable state is initiated only after the outputs are in a LOW state, thus eliminating the possibility of a "runt" clock pulse.The SY89830U I/O are fully differential and 100K ECL compatible. Differential 10K ECL logic can interface directly into the SY89830U inputs.The SY89830U is part of Micrel's high-speed precision edge timing and distribution family. For applications that require a different I/O combination, choose from a comprehensive product line of high-speed, low-skew fanout buffers, translators, and clock generators.

Additional Features
    • Guaranteed AC parameters over temp/voltage:
      • >2.5GHz fMAX
      • <25ps within-device skew
      • <225ps tr/tf time
      • <450ps prop delay
    • Low jitter design:
      • <1psRMS cycle-to-cycle jitter
    • <15psPP total jitter
    • 2:1 Differential MUX input
    • Flexible supply voltage: 2.5V/3.3V/5V
    • Wide operating temperature range: -40°C to +85°C
    • 100K ECL compatible outputs
    • Inputs accept PECL/LVPECL/ECL/HSTL logic levels
    • Available in a 16-pin TSSOP package
Parametrics
Name
Value
Product Type
Fanout & Buffer and Drivers
Description
2:4
Input
ECL/PECL/LVPECL/LVECL
Output
ECL/PECL/LVPECL/LVECL
Supply Voltage
2.5/3.3/5
Max Freq (GHz)
2.5
Max Prop Delay (ps)
450
Icc (mA)
50
Max Within Device Skew (ps)
25
OE
False
RPE
False
FSI
False
Input Mux
True
Input EQ
False
Output Type
ECL/PECL/LVPECL/LVECL

Documents

Jump to:

Data Sheets


125KB

Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Dimension
Solder Composition
JEDEC Indicator
RoHS
China EFUP
SY89830UK4G-TR
0.000000
0.150000
16
TSSOP
4.4mm
NiPdAu
e4
SY89830UK4G
0.000000
0.170213
16
TSSOP
4.4mm
NiPdAu
e4
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
