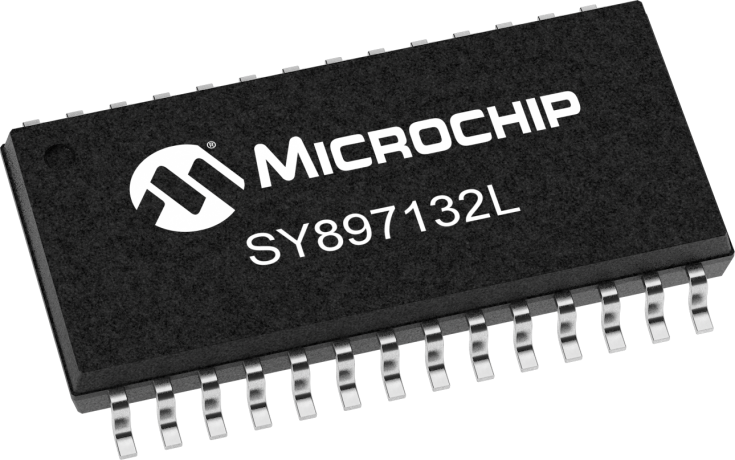

product primary image

SY897132L

Status: In Production

Features:

  • Serial loop replication
  • No external components required
  • T11 Fibre Channel compliant at 1.0625Gbps
  • IEEE802.3z Gigabit Ethernet compliant at 1.25Gbps
  • SMPTE-292M compliant at 1.485Gbps
  • Operates with 3.3V ±5%
  • Industrial temperature range: –40°C to +85°C
  • Available in 28-pin TSSOP package
View More
Overview
Documents
Development Environment
RoHS Information
Add to Cart

Device Overview

Summary

The SY897132L is a Link Replicator which provides both serial loop replication as well as serial loopback control functions. It is high performance and works up to 1.5Gbps on 3.3V power supplies. The SY897132L is ideal for Fibre Channel, Gigabit Ethernet, HDTV, and SATA applications. Other applications include internal/external connection routing in Host Bus Adaptors as well as hot-pluggable links between switch cards.The IN input is sent to both OUT0 and OUT1, which are enabled when OE0 and OE1 are HIGH and disabled when they are LOW. When the outputs are disabled, both differential outputs go HIGH and the buffers are turned off to save power.MUX0 controls, whether IN or IN1, is sent to OUT0. Similarly, MUX1 controls, whether IN or IN0, is sent to OUT1. MUX selects whether IN0 or IN1 is sent to OUT.The SY897132L operates on 3.3V ±5% power supplies and is guaranteed over the full industrial temperature range (–40°C to +85°C). The SY897132L is part of Micrel’s high-speed, Precision Edge® product line.

Additional Features
    • Serial loop replication
    • No external components required
    • T11 Fibre Channel compliant at 1.0625Gbps
    • IEEE802.3z Gigabit Ethernet compliant at 1.25Gbps
    • SMPTE-292M compliant at 1.485Gbps
    • Operates with 3.3V ±5%
    • Industrial temperature range: –40°C to +85°C
    • Available in 28-pin TSSOP package
Parametrics
Name
Value
Product Type
Fanout & Buffer and Drivers
Description
Link Replicator
Input
LVPECL
Output
LVPECL
Supply Voltage
3.3
Max Freq (GHz)
0.8
Max Data (Gbps)
1.5
Max Prop Delay (ps)
4000
Icc (mA)
105
OE
True
RPE
False
FSI
False
Input Mux
True
Input EQ
False
Output Type
LVPECL
