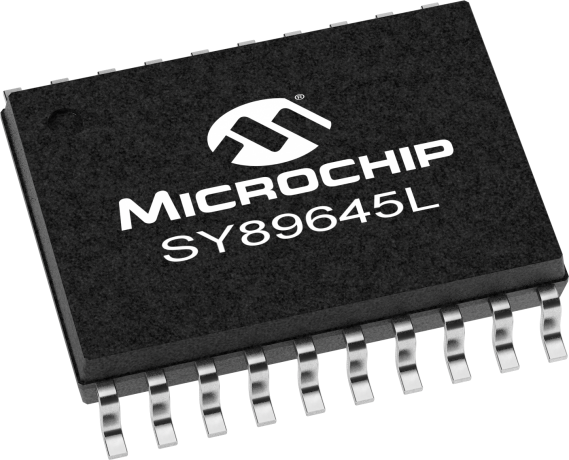

product primary image

SY89645L

Status: In Production

Features:

  • Four identical LVDS outputs
  • CLKIN accepts LVCMOS or LVTTL input levels
  • Maximum output frequency: 650MHz
  • Translates LVCMOS/LVTTL input signals to LVDS levels
  • <40ps output-to-output skew
  • <3ns propagation delay
  • <400ps rise/fall times
  • 3.3V ±5% operating supply
  • Industrial temperature range: -40°C to +85°C
  • Available in 20-pin TSSOP
View More
Overview
Documents
Development Environment
RoHS Information
Add to Cart

Device Overview

Summary

The SY89645L is a 3.3V, fully differential, low skew, 1:4 LVDS fanout buffer that accepts LVTTL or LVCMOS inputs. It is capable of processing clock signals as fast as 650MHz. The LVDS signals are optimized to provide less than 40ps of output skew.The single-ended input takes a 3.3V LVTTL or LVCMOS, with a signal swing as small as 1.2V. The outputs are 280mV LVDS, with fast rise and fall times, guaranteed to be less than 400ps.The SY89645L operates from a 3.3V + 5% power supply and is guaranteed over the full industrial temperature range (-40°C to +85°C). The SY89645L is part of Micrel's Precision Edge® product line.

Additional Features
    • Four identical LVDS outputs
    • CLKIN accepts LVCMOS or LVTTL input levels
    • Maximum output frequency: 650MHz
    • Translates LVCMOS/LVTTL input signals to LVDS levels
    • <40ps output-to-output skew
    • <3ns propagation delay
    • <400ps rise/fall times
    • 3.3V ±5% operating supply
    • Industrial temperature range: -40°C to +85°C
    • Available in 20-pin TSSOP
Parametrics
Name
Value
Product Type
Fanout & Buffer and Drivers
Description
1:4
Input
LVCMOS/LVTTL
Output
LVDS
Supply Voltage
3.3
Max Freq (GHz)
0.65
Max Prop Delay (ps)
3000
Icc (mA)
43
Max Within Device Skew (ps)
40
OE
False
RPE
False
FSI
False
Input Mux
False
Input EQ
False
Output Type
LVDS

Documents

Jump to:

Data Sheets


362KB

User Guides


Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Dimension
Solder Composition
JEDEC Indicator
RoHS
China EFUP
SY89645LK4G-TR
0.076500
0.521326
20
TSSOP
4.4mm
NiPdAu
e4
SY89645LK4G
0.076500
0.205135
20
TSSOP
4.4mm
NiPdAu
e4
To see a complete listing of RoHS data for this device, please Click here
