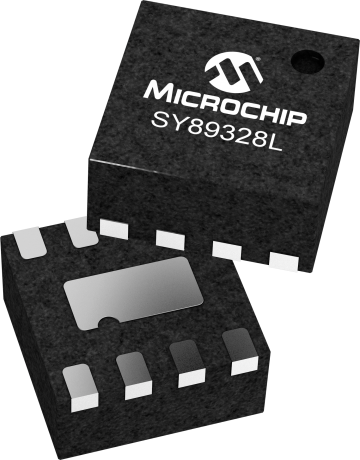

SY89328L

Status: In Production

Features:

  • 3.3V ±10% power supply
  • Guaranteed AC parameters over temperature: fMAX > 275MHz (LVTTL)
  • < 2ns LVPECL-to-LVTTL propagation delay
  • < 600ps LVTTL-to-LVPECL propagation delay
  • Internal 75kΩ input pull-up and pull-down resistors
  • Industrial temperature range: -40°C to +85°C
  • Available in ultra-small 8-pin MLF™ (2mm x 2mm) package
View More
Overview
Documents
Development Environment
RoHS Information
Buy Now

Device Overview

Summary

The SY89328L is a differential LVPECL-to-LVTTL translator and an LVTTL-to-differential LVPECL translator in a single package. Because LVPECL (Positive ECL) levels are used, only +3.3V and ground are required. The SY89328L is functionally equivalent to the SY100EPT28L, but in an ultra-small 8-lead MLF™ package that features a 70% smaller footprint. This ultra-small package and the dual translation design of the SY89328L make it ideal for applications that are sending and receiving signals across a backplane.

Additional Features
    • 3.3V ±10% power supply
    • Guaranteed AC parameters over temperature: fMAX > 275MHz (LVTTL)
    • < 2ns LVPECL-to-LVTTL propagation delay
    • < 600ps LVTTL-to-LVPECL propagation delay
    • Internal 75kΩ input pull-up and pull-down resistors
    • Industrial temperature range: -40°C to +85°C
    • Available in ultra-small 8-pin MLF™ (2mm x 2mm) package
Parametrics
Name
Value
Product Type
Logic Translators
Input
LVPECL/LVTTL
Output
LVTTL/LVPECL
Supply Voltage
3.3
Max Freq (GHz)
0.275
Max Prop Delay (ps)
600
Icc (mA)
40
OE
False
RPE
False
FSI
False
Input Mux
False
Input EQ
False
Channels
Single
Output Type
LVTTL/LVPECL
Output Voltage
3.3

Documents

Jump to:

Data Sheets

11/11/2015
47KB

User Guides

11/11/2015
350KB

Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (grams)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
SY89328LMG-TR
0.010900
0.339227
8
VDFN
2x2x0.9mm
NiPdAu
e4
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
