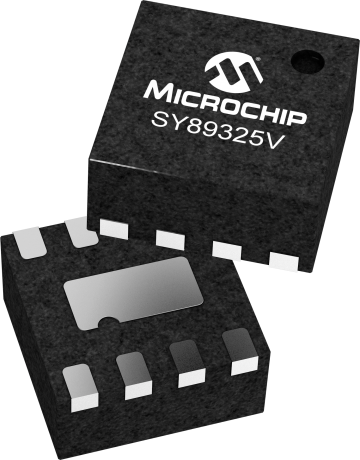

SY89325V

Status: In Production

Features:

  • DC-to >1.5Gbps data rate throughput
  • >750MHz clock fMAX
  • <50ps within-device skew
  • <1psRMS random jitter
  • <10psPP deterministic jitter
  • <1psRMS cycle-to-cycle jitter
  • <10psPP total jitter (clock)
  • Accepts CML, PECL, LVPECL inputs
  • 350mV LVDS output swing
  • Power supply 3.3V ±10% or 5.0V ±10%
  • -40°C to +85°C temperature range
  • Available in ultra-small (2mm x 2mm) 8-pin MLF® package
View More
Overview
Documents
Development Environment
RoHS Information
Buy Now

Device Overview

Summary

The SY89325V is a fully differential, CML/PECL/LVPECLto-LVDS translator. It achieves LVDS signaling up to 1.5Gbps and clock rates of 750MHz, depending of the distance and the characteristics of the media and noise coupling sources. LVDS is intended to drive 50Ω impedance transmission line media such as PCB traces, backplanes, or cables.SY89325V inputs can be terminated with a single resistor between the true and complement pins of the input.The SY89325V is a member of Micrel's Precision Edge® family of high-speed logic devices. This family features ultra-small packaging, high signal integrity, and operation at many different supply voltages. For applications that require dual translators, consider the SY55855V.

Additional Features
    • Guaranteed AC performance over temp and voltage:
      • DC-to >1.5Gbps data rate throughput
      • >750MHz clock fMAX
      • <50ps within-device skew
    • Ultra-low jitter design:
      • <1psRMS random jitter
      • <10psPP deterministic jitter
    • <1psRMS cycle-to-cycle jitter
    • <10psPP total jitter (clock)
    • Accepts CML, PECL, LVPECL inputs
    • 350mV LVDS output swing
    • Power supply 3.3V ±10% or 5.0V ±10%
    • -40°C to +85°C temperature range
    • Available in ultra-small (2mm x 2mm) 8-pin MLF® package
Parametrics
Name
Value
Product Type
Logic Translators
Input
PECL/LVPECL/CML
Output
LVDS
Supply Voltage
3.3
Max Freq (GHz)
0.75
Max Prop Delay (ps)
700
Icc (mA)
80
OE
False
RPE
False
FSI
False
Input Mux
False
Input EQ
False
Channels
Single
Output Type
LVDS
Output Voltage
3.3

Documents

Jump to:

Data Sheets

02/20/2018
567KB

User Guides

11/11/2015
532KB

Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (grams)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
SY89325VMG-TR
0.010900
0.339227
8
VDFN
2x2x0.9mm
NiPdAu
e4
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
