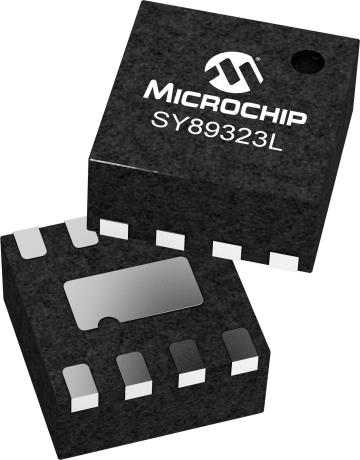

product primary image

SY89323L

Status: In Production

Features:

  • 3.3V power supply
  • 1.9ns typical propagation delay
  • Maximum frequency > 275MHz
  • Differential LVPECL inputs
  • 24mA LVTTL outputs
  • Flow-through pinouts
  • Internal input resistors: pull-down on IN, pull-down and pull-up on /IN
  • Q output will default LOW with inputs open
  • Available in ultra-small 8-pin MLF® (2mm x 2mm) package
View More
Overview
Documents
Development Environment
RoHS Information
Buy Now

Device Overview

Summary

The SY89323L is a dual differential LVPECL-to-LVTTL translator. Because LVPECL (Low Voltage Positive ECL) levels are used, only +3.3V and ground are required. The SY89323L is functionally equivalent to the SY100EPT23L, but in an ultra-small 8-pin MLF® package that features a 70% smaller footprint. The ultra-small package and the dual gate design of the SY89823L make it ideal for applications that require the translation of a clock and data signal in a minimal space. The inputs are compatible with 10k and 100k input levels and any standard differential LVPECL input referenced to a VCC of 3.3V.

Additional Features
    • 3.3V power supply
    • 1.9ns typical propagation delay
    • Maximum frequency > 275MHz
    • Differential LVPECL inputs
    • 24mA LVTTL outputs
    • Flow-through pinouts
    • Internal input resistors: pull-down on IN, pull-down and pull-up on /IN
    • Q output will default LOW with inputs open
    • Available in ultra-small 8-pin MLF® (2mm x 2mm) package
Parametrics
Name
Value
Product Type
Logic Translators
Input
LVPECL
Output
LVTTL
Supply Voltage
3.3
Max Freq (GHz)
0.275
Max Prop Delay (ps)
250
Icc (mA)
30
Max Within Device Skew (ps)
50
OE
False
RPE
False
FSI
False
Input Mux
False
Input EQ
False
Channels
Dual
Output Type
LVTTL
Output Voltage
3.3

Documents

Jump to:

Data Sheets

11/11/2015
460KB

User Guides


Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (grams)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
SY89323LMG-TR
0.010900
0.339227
8
VDFN
2x2x0.9mm
NiPdAu
e4
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
