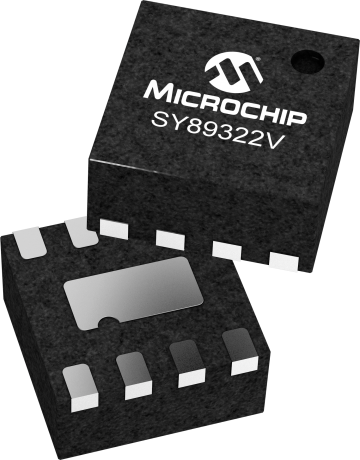

product primary image

SY89322V

Status: In Production

Features:

  • 3.3V and 5V power supply option
  • 300ps typical propagation delay
  • Differential LVPECL outputs
  • PNP LVTTL inputs for minimal loading
  • Flow-through pinouts
  • Q outputs will default HIGH with inputs open
  • Max. frequency range 800MHz
  • Available in ultra-small 8-pin MLF® (2mm x 2mm) package
View More
Overview
Documents
Development Environment
RoHS Information
Buy Now

Device Overview

Summary

The SY89322V is a dual TTL/CMOS-to-differential PECL translator capable of running from a 3.3V or 5V supply. This part can be used in either LVTTL/LVCMOS/LVPECL or TTL/CMOS/PECL systems. It requires only a single positive supply of +3.3V or +5V, no negative supply is required.The SY89322V is functionally equivalent to the SY100EPT22V, but in an ultra-small 8-lead MLF® package that features a 70% smaller footprint. The ultra-small package and the low skew, dual gate design of the SY89322V makes it ideal for those applications where space, performance and low power are at a premium.

Additional Features
    • 3.3V and 5V power supply option
    • 300ps typical propagation delay
    • Differential LVPECL outputs
    • PNP LVTTL inputs for minimal loading
    • Flow-through pinouts
    • Q outputs will default HIGH with inputs open
    • Max. frequency range 800MHz
    • Available in ultra-small 8-pin MLF® (2mm x 2mm) package
Parametrics
Name
Value
Product Type
Logic Translators
Input
LVTTL
Output
LVPECL
Supply Voltage
3.3/7
Max Freq (GHz)
0.8
Max Prop Delay (ps)
600
Icc (mA)
25
Max Within Device Skew (ps)
100
OE
False
RPE
False
FSI
False
Input Mux
False
Input EQ
False
Channels
Dual
Output Type
LVPECL
Output Voltage
3.3/6

Documents

Jump to:

Data Sheets

11/11/2015
44KB

User Guides

11/11/2015
3076KB

Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (grams)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
SY89322VMG-TR
0.010900
0.339227
8
VDFN
2x2x0.9mm
NiPdAu
e4
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
