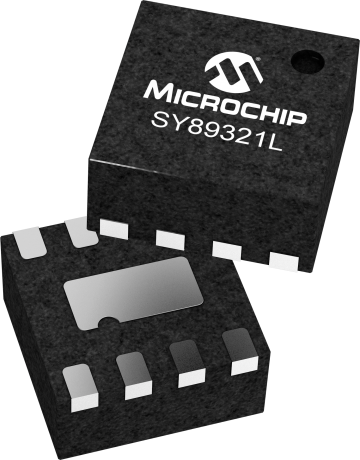

SY89321L

Status: In Production

Features:

  • 3.3V power supply
  • 1.9ns typical propagation delay
  • 275MHz fMAX
  • Differential LVPECL/CML/LVDS inputs
  • 24mA LVTTL outputs
  • Flow-through pinouts
  • Internal input resistors: pulldown on IN, pulldown and pullup on /IN
  • Q output will default LOW with inputs open
  • VBB output
  • Available in ultra-small 8-pin MLF® (2mm x 2mm) package
View More
Overview
Documents
Development Environment
RoHS Information
Buy Now

Device Overview

Summary

The SY89321L is a differential LVPECL/CML/LVDSto-LVTTL translator requiring only a single +3.3V power.The SY89321L is functionally equivalent to the SY100EPT21L, but in an ultra-small 8-pin MLF® package that features a 70% smaller footprint. This ultra-small package and low skew single gate design make the SY89321L ideal for applications that require the translation of a clock or data signal where minimal space, low power and low cost are critical.VBB allows a differential, single-ended, or AC-coupled interface to the device. If used, the VBB output should be bypassed to VCC with 0.01µF capacitor.Under open input conditions, the /IN will be biased at a VCC/2 voltage level and the IN input will be pulled to ground. This condition will force the Q output low to provide added stability.The SY89321L is compatible with positive ECL 100k logic levels.

Additional Features
    • 3.3V power supply
    • 1.9ns typical propagation delay
    • 275MHz fMAX
    • Differential LVPECL/CML/LVDS inputs
    • 24mA LVTTL outputs
    • Flow-through pinouts
    • Internal input resistors: pulldown on IN, pulldown and pullup on /IN
    • Q output will default LOW with inputs open
    • VBB output
    • Available in ultra-small 8-pin MLF® (2mm x 2mm) package
Parametrics
Name
Value
Product Type
Logic Translators
Input
LVPECL/CML/LVDS
Output
LVTTL
Supply Voltage
3.3
Max Freq (GHz)
0.275
Max Prop Delay (ps)
2500
Icc (mA)
20
OE
False
RPE
False
FSI
False
Input Mux
False
Input EQ
False
Channels
Single
Output Type
LVTTL
Output Voltage
3.3

Documents

Jump to:

Data Sheets

11/11/2015
45KB

User Guides

11/11/2015
2370KB

Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (grams)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
SY89321LMG-TR
0.010900
0.339227
8
VDFN
2x2x0.9mm
NiPdAu
e4
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
