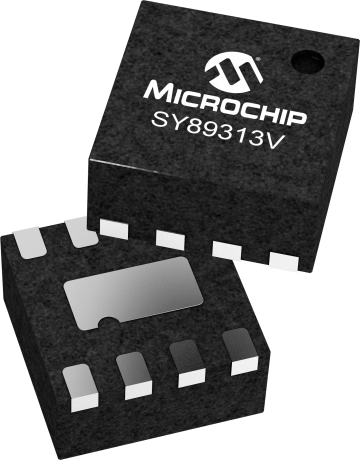

SY89313V

Status: In Production

Features:

  • >4GHz fMAX input frequency
  • <240ps tr/tf
  • <500ps TPD
  • 3.3V and 5V power supply operation
  • 100k ECL/PECL compatible I/O
  • Wide operating temperature range: -40°C to +85°C
  • Available in ultra-small 8-pin MLF® (2mm x 2mm) package
View More
Overview
Documents
Development Environment
RoHS Information
Buy Now

Device Overview

Summary

The SY89313V is a differential ECL/PECL integrated ÷4 divider clock generator. It is functionally equivalent to the SY100EP33V but in an ultra-small 8-lead MLF® package that features a 70% smaller footprint.The VBB pin, an internally generated voltage supply, is available for this device only. For single-ended input conditions, the unused differential input is connected to VBB as a switching reference voltage. VBB may also re-bias ACcoupled inputs. When used, decouple VBB and VCC via a 0.01µF capacitor and limit current sourcing or sinking to 0.5mA. When not used, VBB should be left open.The reset pin is asynchronous and is asserted on the rising edge. Upon power-up, the internal flip-flops will be in a random state; the reset allows for the synchronous use of multiple SY89313V's in a system.

Additional Features
    • Guaranteed AC performance over temperature and voltage
      • >4GHz fMAX input frequency
      • <240ps tr/tf
      • <500ps TPD
    • 3.3V and 5V power supply operation
    • 100k ECL/PECL compatible I/O
    • Wide operating temperature range: -40°C to +85°C
    • Available in ultra-small 8-pin MLF® (2mm x 2mm) package
Parametrics
Name
Value
Product Type
Divider
Description
÷4, 2x2;1 Output
Input
ECL/PECL
Output
ECL/PECL
Supply Voltage
3.3/5V
Max Freq (GHz)
4
Max Prop Delay (ps)
500
Max Within Device Skew (ps)
-
OE
False
RPE
False
FSI
False
Input Mux
False
Input EQ
False
Output Type
ECL/PECL
