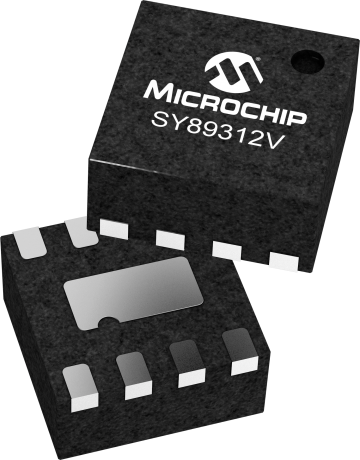

SY89312V

Status: In Production

Features:

  • >4GHz fMAX input
  • <160ps tr/tf
  • <440ps tpd
  • 3.3V and 5V power supply operation
  • 100k ECL/PECL compatible I/O
  • Internal 75KΩ input pull-down resistors
  • Wide operating temperature range: -40°C to +85°C
  • Available in ultra-small 8-pin MLF® (2mm x 2mm) package
View More
Overview
Documents
Development Environment
RoHS Information
Buy Now

Device Overview

Summary

The SY89312V is an integrated ÷2 divider with differential clock inputs. It is functionally equivalent to the SY100EP32V but in an ultra-small 8-lead MLF® package that features a 70% smaller footprint.The VBB pin, an internally generated voltage supply, is available for this device only. For single-ended input conditions, the unused differential input is connected to VBB as a switching reference voltage. VBB may also bias AC-coupled inputs. When used, decouple VBB and VCC via a 0.01µF capacitor and limit current sourcing or sinking to 0.5mA. When not used, VBB should be left open.The reset pin is asynchronous and is asserted when it is high. Upon power-up, the internal flip-flops will be in a random state; the reset allows for the synchronous use of multiple SY89312Vs in a system.

Additional Features
    • Guaranteed AC performance over temperature and voltage:
      • >4GHz fMAX input
      • <160ps tr/tf
      • <440ps tpd
    • 3.3V and 5V power supply operation
    • 100k ECL/PECL compatible I/O
    • Internal 75KΩ input pull-down resistors
    • Wide operating temperature range: -40°C to +85°C
    • Available in ultra-small 8-pin MLF® (2mm x 2mm) package
Parametrics
Name
Value
Product Type
Divider
Description
÷2, 2x2;1 Output
Input
ECL/PECL
Output
ECL/PECL
Supply Voltage
3.3/5V
Max Freq (GHz)
4
Max Prop Delay (ps)
440
Max Within Device Skew (ps)
-
OE
False
RPE
False
FSI
True
Input Mux
False
Input EQ
False
Output Type
ECL/PECL

Documents

Jump to:

Data Sheet

11/11/2015
391KB

User Guides

11/11/2015
259KB

Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
SY89312VMG-TR
0.010900
0.339227
8
VDFN
2x2x0.9mm
NiPdAu
e4
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
