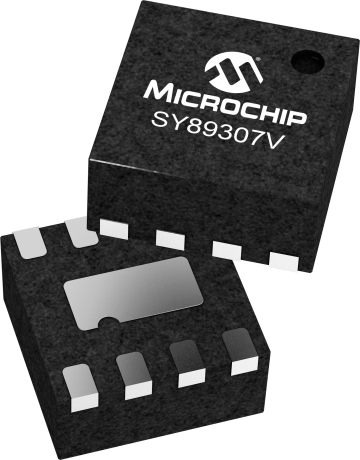

SY89307V

Status: In Production

Features:

  • 3.3V and 5V power supply options
  • >2.5Gbps maximum throughput
  • Fast output transitions <160ps tr/tf
  • 100k compatible PECL/ECL I/O
  • Functionally equivalent to SY88927V and SY100EP16VS
  • Variable output swing from 100mV to 700mV
  • Guaranteed operation over -40°C to +85°C temperature range
  • Available in ultra-small 8-pin MLF® (2mm x 2mm) package
View More
Overview
Documents
Development Environment
RoHS Information
Add To Cart

Device Overview

Summary

The SY89307V is a differential receiver with a variable output swing. It is functionally equivalent to the SY100EP16VS but in an ultra-small 8-lead MLF® package that features a 70% smaller footprint. Like the EP16VS its variable output swing makes it ideal for use as a VCSEL laser driver.The operational range of the SY89307V control input is from VBB (maximum output swing) to VCC (minimum output swing). The output swing can be controlled by a variable resistor between the VBB pin and VCC with the wiper driving VCTRL.The SY89307V provides a VBB output for either singleended use or as a DC bias for AC-coupling to the device.The VBB pin should be used only as a bias for this device as its current sink/source capability is limited. Whenever used, the VBB pin should be bypassed to VCC via a 0.01µF capacitor. Under open input conditions the Q output will be LOW.

Additional Features
    • 3.3V and 5V power supply options
    • >2.5Gbps maximum throughput
    • Fast output transitions <160ps tr/tf
    • 100k compatible PECL/ECL I/O
    • Functionally equivalent to SY88927V and SY100EP16VS
    • Variable output swing from 100mV to 700mV
    • Guaranteed operation over -40°C to +85°C temperature range
    • Available in ultra-small 8-pin MLF® (2mm x 2mm) package
Parametrics
Name
Value
Product Type
Receiver
Description
2x2 version of SY100EP16VS
Input
ECL/PECL
Supply Voltage
3.3/5
Max Data (Gbps)
2.5
Max Prop Delay (ps)
300
Icc (mA)
51
OE
False
RPE
False
FSI
False
Input Mux
False
Input EQ
False
Channels
Single
Output Type
ECL/PECL
Output Voltage
3.3/5V
