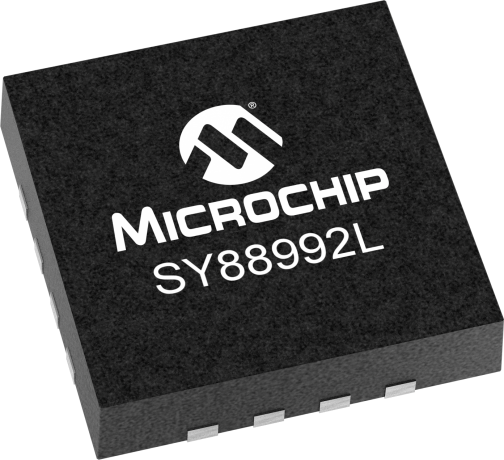

product primary image

SY88992L

Status: In Production

Features:

  • Up to 25mA modulation current
  • Operates from 100Mbps to 4.25Gbps
  • Peaking with variable duration option for better VCSEL response.
  • Dual peaking, on the rise and falling edges
  • Peaking current proportional to modulation current
  • Easy modulation current setting
  • Fully controllable with Micrel MIC3001
  • Small (3mm x 3mm) 16 pin QFN package
View More
Overview
Documents
Development Environment
RoHS Information
Buy Now

Device Overview

Summary

The SY88992L is a single supply 3.3V, low power consumption, small-form factor VCSEL driver ideal for use in datacom applications; Ethernet, GbE (Gigabit Ethernet), and FC (Fibre Channel) applications that operate from 100Mbps up to 4.25Gbps. The modulation current is set by applying an external voltage at the IM_SET pin. The driver features an adjustable peaking option with variable amplitude and duration to improve VCSEL edge response. The driver can deliver modulation current up to 25mA and a peaking current up to 35% of the modulation current. This device is intended to be used with Micrel's MIC3001 Optical Transceiver Management IC, which allows for both modulation and bias current control and monitoring, APC (Automatic Power Control), and temperature compensation.

Additional Features
  • Up to 25mA modulation current
  • Operates from 100Mbps to 4.25Gbps
  • Peaking with variable duration option for better VCSEL response.
  • Dual peaking, on the rise and falling edges
  • Peaking current proportional to modulation current
  • Easy modulation current setting
  • Fully controllable with Micrel MIC3001
  • Small (3mm x 3mm) 16 pin QFN package
Parametrics
Name
Value
Part Type
Lasers and EML Drivers - VCSEL Drivers
Data Rate Capability
4.25
Power Supply (V)
3.3
Drive Current (mA)
25

Documents

Jump to:

Data Sheet

11/11/2015
745KB

User Guides

11/11/2015
498KB

Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
SY88992LMG
0.021300
0.050000
16
VQFN
3x3x0.9mm
NiPdAu
e4
SY88992LMG-TR
0.021300
0.801700
16
VQFN
3x3x0.9mm
NiPdAu
e4
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
