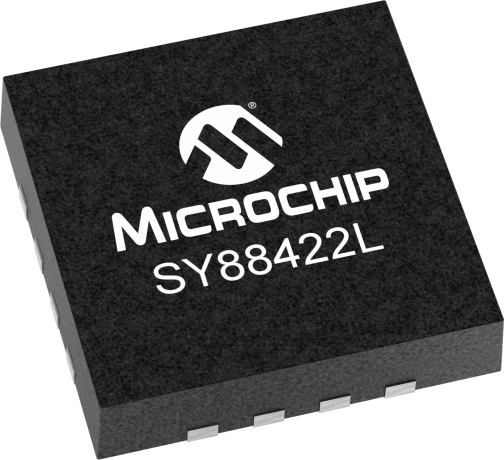

product primary image

SY88422L

Status: In Production

Features:

  • 35mA power supply current typical
  • Operation up to 4.25Gbps
  • Modulation current up to 90mA
  • Bias current up to 100mA
  • Available in 16-pin small form factor (3mm x 3mm) QFN package
View More
Overview
Documents
Development Environment
RoHS Information
Buy Now

Device Overview

Summary

The SY88422L is a single 3.3V supply, small form factor laser driver for telecom/datacom applications up to 4.25Gbps. The driver can deliver modulation current up to 90mA and a bias current up to 100mA.

Additional Features
  • 35mA power supply current typical
  • Operation up to 4.25Gbps
  • Modulation current up to 90mA
  • Bias current up to 100mA
  • Available in 16-pin small form factor (3mm x 3mm) QFN package
Parametrics
Name
Value
Part Type
Lasers and EML Drivers - DFB/FP Laser Drivers
Data Rate Capability
4.25
Power Supply (V)
3.3
Drive Current (mA)
90

Documents

Jump to:
×

Data Sheet

SY88422L-4.25Gbps Laser Driver with Integrated Bias
11/09/2015
380KB

Application Notes

Download All
Micrel AN 36 - MIC4826/7 Electroluminescent Display Drivers - MIC4826/7 Electroluminescent Display Drivers
04/10/2018
96KB
Micrel AN 9 - Design Considerations for 5V to 3.3V Pass Regulators - Design Considerations for 5V to 3.3V Pass Regulators
04/10/2018
28KB

User Guides

SY88422L Electrical Evaluation Board User's Guide
11/12/2015
396KB
SY88422L Optical Evaluation Board User's Guide
11/12/2015
444KB

Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (grams)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
SY88422LMG
0.021300
0.050000
16
VQFN
3x3x1.00mm
NiPdAu
e4
SY88422LMG-TR
0.021300
0.801700
16
VQFN
3x3x1.00mm
NiPdAu
e4
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
