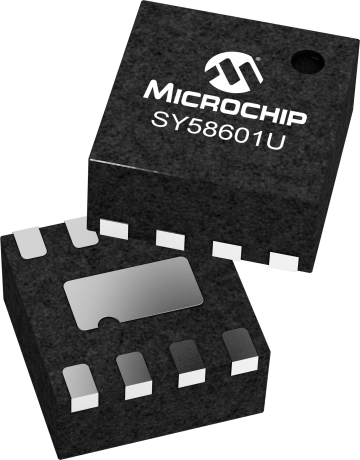

product primary image

SY58601U

Status: In Production

Features:

  • DC-to >5Gbps data rate throughput
  • DC-to >5GHz clock fMAX
  • <260ps in-to-out tpd
  • tr / tf <90ps
  • <1psRMS random jitter
  • <10psPP deterministic jitter
  • <10psPP total jitter (clock)
  • Minimum input swing 200mV (|IN–/IN|)
  • Unique, patent-pending input termination and VT pin accepts DC-coupled and AC-coupled inputs (CML, PECL, LVDS)
  • Typical 800mV (100k) LVPECL output swing
  • Power supply 2.5V ±5% or 3.3V ±10%
  • -40°C to 85°C industrial temperature range
  • Available in an ultra-small (2mm x 2mm) 8-pin MLF® package
View More
Overview
Documents
Development Environment
RoHS Information
Buy Now

Device Overview

Summary

The SY58601U is a 2.5V/3.3V precision, high-speed, differential receiver capable of handling clocks up to 5GHz and data streams up to 5Gbps.The differential input includes Micrel's unique, 3-pin input termination architecture that allows users to interface to any differential signal (AC or DC-coupled) as small as 200mVpp without any level shifting or termination resistor networks in the signal path. The outputs are 800mV LVPECL, with extremely fast rise/fall times guaranteed to be less than 90ps.The SY58601U operates from a 2.5V ±5% supply or a 3.3V ±10% supply and is guaranteed over the full industrial temperature range of -40°C to +85°C. For applications that require CML outputs, consider the SY58600U or for 400mV LVPECL outputs the SY58602U. The SY58601U is part of Micrel's high-speed, Precision Edge® product line.

Additional Features
    • Guaranteed AC performance over temperature and voltage:
      • DC-to >5Gbps data rate throughput
      • DC-to >5GHz clock fMAX
      • <260ps in-to-out tpd
      • tr / tf <90ps
    • Ultra low-jitter design:
      • <1psRMS random jitter
    • <10psPP deterministic jitter
    • <10psPP total jitter (clock)
    • Minimum input swing 200mV (|IN–/IN|)
    • Unique, patent-pending input termination and VT pin accepts DC-coupled and AC-coupled inputs (CML, PECL, LVDS)
    • Typical 800mV (100k) LVPECL output swing
    • Power supply 2.5V ±5% or 3.3V ±10%
    • -40°C to 85°C industrial temperature range
    • Available in an ultra-small (2mm x 2mm) 8-pin MLF® package
Parametrics
Name
Value
Product Type
Driver/Receiver
Description
Line Driver/Receiver
Input
ANY
Output
LVPECL
Supply Voltage
2.5/3.3V
Max Freq (GHz)
5
Max Data (Gbps)
5
Max Prop Delay (ps)
220
Icc (mA)
60
OE
False
RPE
False
FSI
False
Input Mux
False
Input EQ
False
Channels
Single
Output Type
LVPECL

Documents

Jump to:

Data Sheet

04/20/2018
169KB

Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
SY58601UMG-TR
0.010900
0.339227
8
VDFN
2x2x0.9mm
NiPdAu
e4
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
