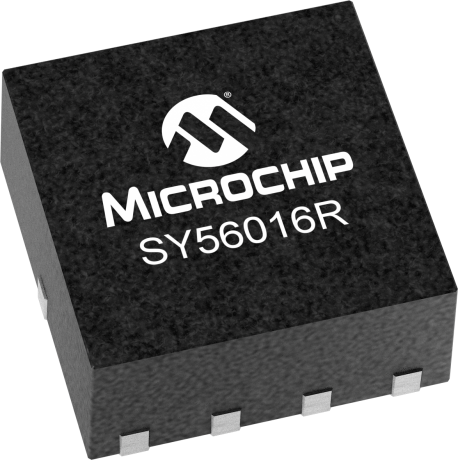

product primary image

SY56016R

Status: In Production

Features:

  • 1.2V/1.8V/2.5V CML Differential Line Driver/Receiver with Equalization
  • Equalizes 9, 18, 27 inches of FR4
  • DC-to >6.4Gbps Data throughput
  • DC-to >5.0GHz Clock throughput
  • <250ps propagation delay (IN-to-Q)
  • <80ps rise/fall times
  • <1psRMS random jitter
  • High-speed CML outputs
  • 2.5V ±5% VCC, 1.2V/1.8V/2.5V ±5% VCCO power supply operation
  • Industrial temperature range: -40°C to +85°C
  • Available in 10-pin (2mm x 2mm) MLF® package
View More
Overview
Documents
Development Environment
RoHS Information
Buy Now

Device Overview

Summary

The SY56016R is a fully differential, low voltage 1.2V/1.8V/2.5V CML Line Driver/Receiver with input equalization. The SY56016R can process clock signals as fast as 5.0GHz or data patterns up to 6.4Gbps.The differential input includes Micrel's unique, 3-pin input termination architecture that interfaces to CML differential signals, without any level-shifting or termination resistor networks in the signal path. The differential input can also accept AC-coupled CML, LVPECL, and LVDS signals. Input voltages as small as 200mV (400mVPP) are applied before the 9", 18", or 27" FR4 transmission line. For AC-coupled input interface applications, an internal voltage reference is provided to bias the VT pin. The outputs are CML, with extremely fast rise/fall times guaranteed to be less than 80ps.The SY56016R operates from a 2.5V ±5% core supply and a 1.2V, 1.8V, or 2.5V ±5% output supply and is guaranteed over the full industrial temperature range (-40°C to +85°C). The SY56016R is part of Micrel's high-speed, Precision Edge® product line.

Additional Features
    • 1.2V/1.8V/2.5V CML Differential Line Driver/Receiver with Equalization
    • Equalizes 9, 18, 27 inches of FR4
    • Guaranteed AC performance over temperature and voltage:
      • DC-to >6.4Gbps Data throughput
      • DC-to >5.0GHz Clock throughput
      • <250ps propagation delay (IN-to-Q)
      • <80ps rise/fall times
    • Ultra-low jitter design
      • <1psRMS random jitter
    • High-speed CML outputs
    • 2.5V ±5% VCC, 1.2V/1.8V/2.5V ±5% VCCO power supply operation
    • Industrial temperature range: -40°C to +85°C
    • Available in 10-pin (2mm x 2mm) MLF® package
Parametrics
Name
Value
Product Type
Driver/Receiver
Description
Line Driver
Input
ANY
Output
CML
Supply Voltage
2.5V
Max Freq (GHz)
6.4
Max Data (Gbps)
5
Max Prop Delay (ps)
250
Icc (mA)
42
OE
False
RPE
False
FSI
False
Input Mux
False
Input EQ
False
Channels
Single
Output Type
CML
Output Voltage
1.2/1.8/2.5V

Documents

Jump to:

Data Sheet

02/21/2018
801KB

User Guides


Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
SY56016RMG-TR
0.085010
10
VQFN
2x2x0.9mm
NiPdAu
e4
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
