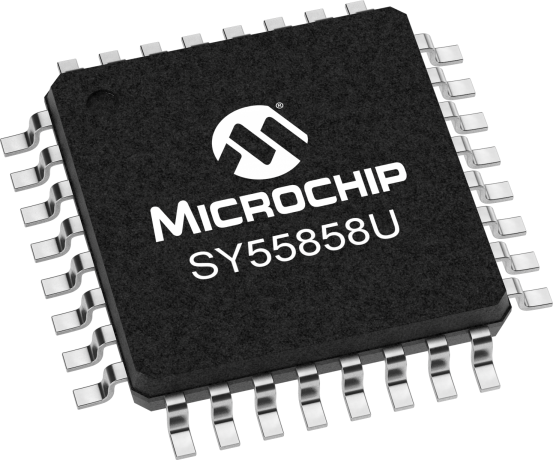

product primary image

SY55858U

Status: In Production

Features:

  • fMAX >3.0GHz (3Gbps)
  • tr/ tf <120ps
  • Within-device skew <25ps
  • Non-blocking "switch architecture"
  • Configurable as dual 2:1 mux, dual 1:2 fanout buffer, 1:4 fanout buffer, quad buffer, or dual 2x2 switch
  • 50Ω compatible outputs
  • Unique input termination and VT pin for DC-coupled and AC-coupled input signals-CML or PECL
  • Fully differential inputs/outputs
  • TTL/CMOS compatible control logic
  • Wide supply voltage range: 2.3V to 3.6V
  • Wide operating temperature range: -40°C to +85°C
  • Available in 32-pin EPAD-TQFP package
View More
Overview
Documents
Development Environment
RoHS Information
Buy Now

Device Overview

Summary

The SY55858U is a low-voltage, high-speed dual 2 x 2 crosspoint switch with a flexible input that accepts CML or PECL, and a 50Ω compatible differential CML (currentmode logic) output. The non-blocking design allows any input to connect to any output. Varying the state of the select inputs allows SY55858U to be used in backup, fault tolerant, protection and backplane distribution applications.The signal inputs (DA0-1 and DB0-1) have a unique internal termination design that allows access to the termination network through VT pins. This feature allows the device to easily interface to other logic standards such as AC-coupled or DC-coupled PECL/LVPECL signals. For applications that require a single-channel 2x2 crosspoint, consider the SY55854.

Additional Features
    • Guaranteed AC parameters over temperature:
      • fMAX >3.0GHz (3Gbps)
      • tr/ tf <120ps
      • Within-device skew <25ps
    • Non-blocking "switch architecture"
    • Configurable as dual 2:1 mux, dual 1:2 fanout buffer, 1:4 fanout buffer, quad buffer, or dual 2x2 switch
    • 50Ω compatible outputs
    • Unique input termination and VT pin for DC-coupled and AC-coupled input signals-CML or PECL
    • Fully differential inputs/outputs
    • TTL/CMOS compatible control logic
    • Wide supply voltage range: 2.3V to 3.6V
    • Wide operating temperature range: -40°C to +85°C
    • Available in 32-pin EPAD-TQFP package
Parametrics
Name
Value
Product Type
Crosspoint Switches
Description
Dual 2x2 Crosspoint Switch 3 Gbps
Input
CML/PECL/LVPECL
Output
CML
Supply Voltage
2.5/3.3
Max Data (Gbps)
3
Max Prop Delay (ps)
450
Icc (mA)
150
Max Within Device Skew (ps)
25
OE
False
RPE
False
FSI
False
Input Mux
True
Input EQ
False
Output Type
CML
Output Voltage
2.5/3.3V

Documents

Jump to:

Data Sheet

11/11/2015
73KB

User Guides


Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
SY55858UHG-TR
0.132200
0.868000
32
TQFP
7x7x1.0mm
NiPdAu
e4
SY55858UHG
0.132200
0.868000
32
TQFP
7x7x1.0mm
NiPdAu
e4
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
