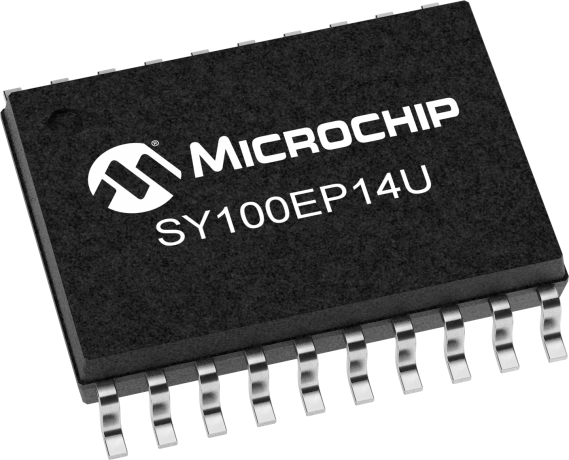

product primary image

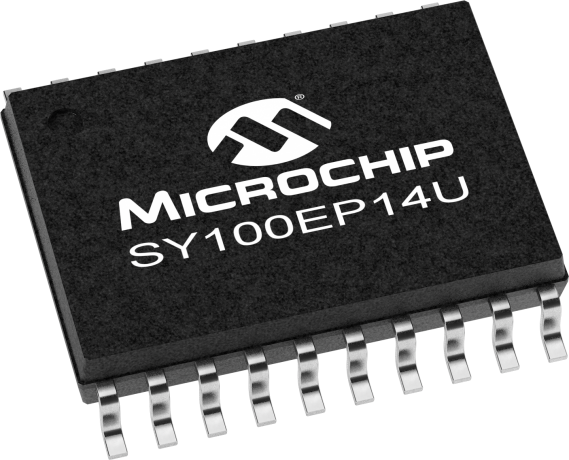

SY100EP14U

Status: In Production

Features:

  • >2GHz fMAX
  • <25ps within-device skew
  • <275ps tr/tf time
  • <525ps prop delay
  • 2:1 Differential MUX input
  • Flexible supply voltage: 2.5V/3.3V/5V
  • Wide operating temperature range: -40°C to +85°C
  • VBB reference for single-ended or AC-coupled PECL inputs
  • 100K ECL compatible outputs
  • Inputs accept PECL/LVPECL/ECL/HSTL logic
  • 75k internal input pull-down resistors
  • Available in a 20-Pin TSSOP package
View More
Overview
Documents
Development Environment
RoHS Information
Add to Cart

Device Overview

Summary

The SY100EP14U is a high-speed, 2GHz differential PECL/ECL 1:5 fanout buffer optimized for ultra-low skew applications. Within device skew is guaranteed to be less than 25ps over temperature and supply voltage. The wide supply voltage operation allows this fanout buffer to operate in 2.5V, 3.3V, and 5V systems. A VBB reference is included for single-supply or AC-coupled PECL/ECL input applications, thus eliminating resistor networks. When interfacing to a single-ended or AC-coupled PECL/ECL input signal, connect the VBB pin to the unused /CLK pin, and bypass the pin to VCC through a 0.01µF capacitor.

The SY100EP14U features a 2:1 input MUX, making it an ideal solution for redundant clock switchover applications. If only one input pair is used, the other pair may be left floating. In addition, this device includes a synchronous enable pin that forces the outputs into a fixed logic state. Enable or disable state is initiated only after the outputs are in a LOW state, thus eliminating the possibility of a "runt" clock pulse.

The SY100EP14U I/O are fully differential and 100K ECL compatible. Differential 10K ECL logic can interface directly into the SY100EP14U inputs.The SY100EP14U is part of Micrel's high-speed clock synchronization family. For applications that require a different I/O combination, choose from a comprehensive product line of high-speed, low-skew fanout buffers, translators, and clock generators.

Additional Features
    • Guaranteed AC parameters over temp/voltage:
      • >2GHz fMAX
      • <25ps within-device skew
      • <275ps tr/tf time
      • <525ps prop delay
    • 2:1 Differential MUX input
    • Flexible supply voltage: 2.5V/3.3V/5V
    • Wide operating temperature range: -40°C to +85°C
    • VBB reference for single-ended or AC-coupled PECL inputs
    • 100K ECL compatible outputs
    • Inputs accept PECL/LVPECL/ECL/HSTL logic
    • 75k internal input pull-down resistors
    • Available in a 20-Pin TSSOP package
Parametrics
Name
Value
Product Type
Fanout & Buffer and Drivers
Description
2:5
Input
PECL, LVPECL, ECL, HSTL
Output
LVPECL
Supply Voltage
2.5/3.3/5
Max Freq (GHz)
2
Max Prop Delay (ps)
600
Icc (mA)
75
Max Within Device Skew (ps)
25
OE
True
RPE
False
FSI
False
Input Mux
True
Input EQ
False
Output Type
ECL

Documents

Jump to:

Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Dimension
Solder Composition
JEDEC Indicator
RoHS
China EFUP
SY100EP14UK4G
0.078000
0.175676
20
TSSOP
4.4mm
Matte Tin
e3
SY100EP14UK4G-TR
0.078000
0.200000
20
TSSOP
4.4mm
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
