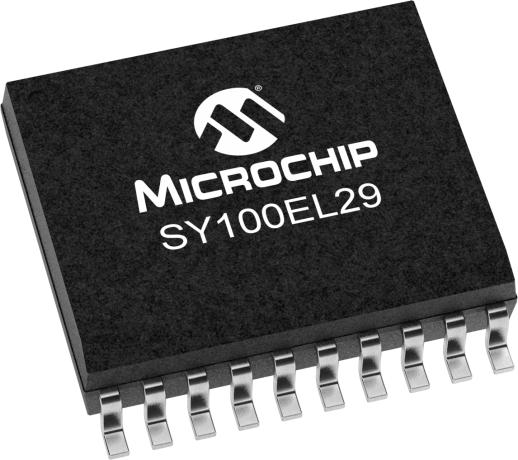

product primary image

SY100EL29

Status: In Production

Features:

  • 3.3V and 5V power supply option
  • Differential D, CLK and Q
  • Extended VEE range of –3.0V to –5.5V
  • VBB output for single-ended use
  • 1100MHz min. toggle frequency
  • Asynchronous Reset and Set
  • Fully compatible with Motorola MC100LVEL29 and MC100EL29
  • Available in 20-pin SOIC package
View More
Overview
Documents
Development Environment
RoHS Information
Add To Cart

Device Overview

Summary

The SY100EL29V is a dual differential register with differential data (inputs and outputs) and clock. The registers are triggered by a positive transition of the positive clock (CLK) input. A HIGH on the Reset (Rx) asynchronously resets the appropriate register so that the Q outputs go LOW. A HIGH on the Set (Sx) asynchronously resets the appropriate register so that the Q outputs go HIGH. The Set and Reset inputs cannot both be HIGH simultaneously.The differential input structures are clamped so that the inputs of unused registers can be left open without upsetting the bias network of the devices. The clamping action will assert the /D and the /CLK sides of the inputs. The noninverting input will pull down to VEE and the inverting input will be biased around VCC/2. Because of the edge-triggered flip-flop nature of the devices, simultaneously opening both the clock and data inputs will result in an output which reaches an unidentified but valid state.The fully differential design of the devices makes them ideal for very high frequency applications where a registered data path is necessary.

Additional Features
    • 3.3V and 5V power supply option
    • Differential D, CLK and Q
    • Extended VEE range of –3.0V to –5.5V
    • VBB output for single-ended use
    • 1100MHz min. toggle frequency
    • Asynchronous Reset and Set
    • Fully compatible with Motorola MC100LVEL29 and MC100EL29
    • Available in 20-pin SOIC package
Parametrics
Name
Value
Product Type
D Flip Flop
Description
Differential Data & Clock D Flip Flop w/ Set & Reset
Input
Differential
Supply Voltage
3.3/5
Max Freq (GHz)
1.1
Max Prop Delay (ps)
700
OE
False
RPE
False
FSI
False
Input Mux
False
Input EQ
False
Channels
Dual
Output Type
Differential

Documents

Jump to:

Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (grams)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
SY100EL29VZG-TR
0.540800
1.461700
20
SOIC
.300in
NiPdAu
e4
SY100EL29VZG
0.540800
1.086316
20
SOIC
.300in
NiPdAu
e4
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
