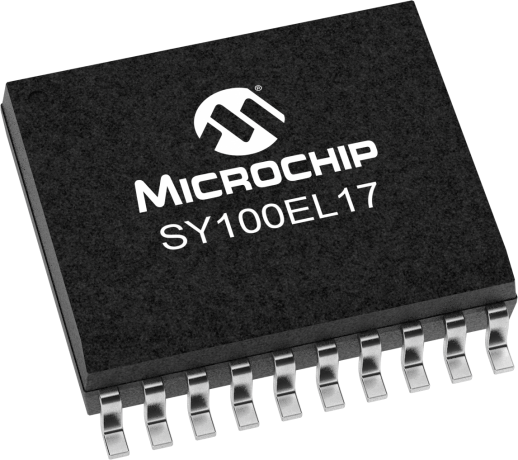

product primary image

SY100EL17

Status: In Production

Features:

  • 3.3V and 5V power supply options
  • High bandwidth output transitions
  • Internal 75KΩ input pull down resistors
  • Available in 20-pin SOIC package
View More
Overview
Documents
Development Environment
RoHS Information
Buy Now

Device Overview

Summary

The SY100EL17V is a quad differential receiver. The device is functionally equivalent to the E116 device with the capability of operation from either a ECL supply voltage (-3.3V or -5V) or PECL supply voltage (+3.3V or +5V).The EL17V provides a VBB output for either single-ended use or as a DC bias for AC coupling to the device. The VBBpin should be used only as a bias for the EL17V as its current sink/source capability is limited.Whenever used, the VBB pin should be bypassed to ground via a 0.01µf capacitor.Under open input conditions, the /D input will be biased at VCC/2 and the D input will be pulled down to VEE. This operation will force the Q output LOW and ensure stability.

Additional Features
    • 3.3V and 5V power supply options
    • High bandwidth output transitions
    • Internal 75KΩ input pull down resistors
    • Available in 20-pin SOIC package
    Parametrics
    Name
    Value
    Product Type
    Receiver
    Description
    Quad Differential Receiver
    Input
    ECL/LVPECL
    Output
    ECL/LVPECL
    Supply Voltage
    3.3/5V
    Max Prop Delay (ps)
    610
    Icc (mA)
    26
    OE
    False
    RPE
    False
    FSI
    False
    Input Mux
    False
    Input EQ
    False
    Channels
    Quad
    Output Type
    ECL/LVPECL

    Documents

    Jump to:

    Development tools data is currently unavailable.

    RoHS Information

    Part Number
    Device Weight (g)
    Shipping Weight (Kg)
    Lead Count
    Package Type
    Package Width
    Solder Composition
    JEDEC Indicator
    RoHS
    China EFUP
    SY100EL17VZG
    0.540800
    1.086316
    20
    SOIC
    .300in
    NiPdAu
    e4
    SY100EL17VZG-TR
    0.540800
    1.461700
    20
    SOIC
    .300in
    NiPdAu
    e4
    To see a complete listing of RoHS data for this device, please Click here
    Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
