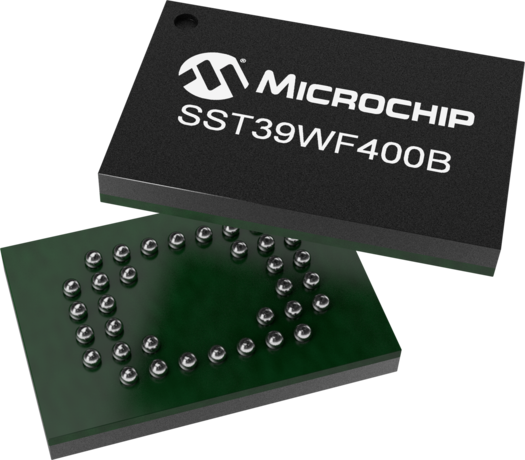

SST39WF400B

4Mb 1.65-1.95V Parallel Flash

Status: In Production

Features:

  • Organized as 256K x16
  • Low Power Consumption: Active Current: 5 mA (typical), Standby Current: 5 µA (typical)
  • Sector-Erase Capability: Uniform 2 KWord sectors
  • Block-Erase Capability: Uniform 32 KWord blocks
  • Fast Erase and Word-Program – Sector-Erase Time: 36 ms (typical), Block-Erase Time: 36 ms (typical), Chip-Erase Time: 140 ms (typical), Word-Program Time: 28 µs (typical)
  • Packages Available:48-ball TFBGA (6mm x 8mm), 48-ball WFBGA (4mm x 6mm), 48-ball XFLGA (4mm x 6mm)
  • All non-Pb (lead-free) devices are RoHS compliant
View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Buy Now

Device Overview

Summary

The SST39WF400B is a 256K x16 CMOS Multi-Purpose Flash (MPF) manufactured with proprietary, high-performance CMOS SuperFlash technology. The split-gate cell design and thick-oxide tunneling injector attain better reliability and manufacturability compared to alternate approaches. The SST39WF400B writes (Program or Erase) with a 1.65-1.95V power supply. This device conforms to JEDEC standard pin assignments for x16 memories.

Additional Features
  • Organized as 256K x16
  • Low Power Consumption: Active Current: 5 mA (typical), Standby Current: 5 µA (typical)
  • Sector-Erase Capability: Uniform 2 KWord sectors
  • Block-Erase Capability: Uniform 32 KWord blocks
  • Fast Erase and Word-Program – Sector-Erase Time: 36 ms (typical), Block-Erase Time: 36 ms (typical), Chip-Erase Time: 140 ms (typical), Word-Program Time: 28 µs (typical)
  • Packages Available:48-ball TFBGA (6mm x 8mm), 48-ball WFBGA (4mm x 6mm), 48-ball XFLGA (4mm x 6mm)
  • All non-Pb (lead-free) devices are RoHS compliant
Parametrics
Name
Value
Density
4 Mbit
Op. Volt Range (V)
1.65 to 1.95
Max. Clock Freq.
1 kHz
Read Access Time
70 ns
Temp Range (°C)
-40°C to +85°C
Endurance
100,000

Documents

Jump to:

Brochures

12/19/2017
3698KB
10/06/2014
3370KB

Product Brief

Product Line Card

Brochures

09/19/2012
740KB

Development tools data is currently unavailable.

Similar Devices

Product
Memory Size
Memory Speed
Package
Price 5K
4000K
1KHz
PLCC-32, TSOP-32
$0.86
4000K
0 kHz
TFBGA-48, TSOP-48, WFBGA-48
$1.03
4 Mbit
0 MHz
TFBGA-48, TSOP-48, WFBGA-48
$0.60
4 Mbit
0 MHz
TFBGA-48, TSOP-48, WFBGA-48
$0.60
4000K
1 kHz
PDIP-32, PLCC-32, TSOP-32
$0.92
4000K
1 kHz
PLCC-32, TSOP-32
$1.07
4000K
0 MHz
TFBGA-48, TSOP-48, WFBGA-48, XFLGA-48
$0.78
4 Mbit
0 MHz
TFBGA-48, TSOP-48, WFBGA-48
$0.57
4 Mbit
0 MHz
TFBGA-48, TSOP-48, WFBGA-48
$0.57
4 Mbit
0 MHz


4000K
1 kHz
TFBGA-48, WFBGA-48
$1.16

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
SST39WF400B-70-4I-B3KE
0.094100
0.666667
48
TFBGA
6x8x1.2mm
SAC
e1
SST39WF400B-70-4C-B3KE
0.094100
0.666667
48
TFBGA
6x8x1.2mm
SAC
e1
SST39WF400B-70-4C-B3KE-T
0.094100
0.336000
48
TFBGA
6x8x1.2mm
SAC
e1
SST39WF400B-70-4I-B3KE-T
0.094100
0.336000
48
TFBGA
6x8x1.2mm
SAC
e1
SST39WF400B-70-4C-MAQE
0.028700
0.459460
48
WFBGA
4x6x0.73mm
SAC
e1
SST39WF400B-70-4C-MAQE-T
0.028700
0.240800
48
WFBGA
4x6x0.73mm
SAC
e1
SST39WF400B-70-4I-MAQE
0.028700
0.459460
48
WFBGA
4x6x0.73mm
SAC
e1
SST39WF400B-70-4I-MAQE-T
0.028700
0.240800
48
WFBGA
4x6x0.73mm
SAC
e1
To see a complete listing of RoHS data for this device, please Click here
