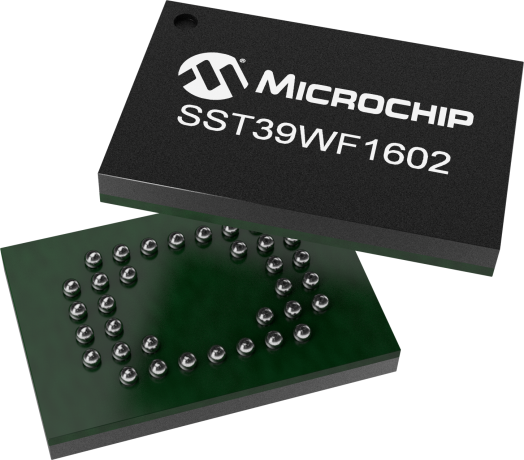

SST39WF1602

16Mb 1.65-1.95V Parallel Flash

Status: In Production

Features:

  • Organized as 1M x16
  • Low Power Consumption (typical values at 5 MHz) – Active Current: 5 mA (typical) – Standby Current: 5 µA (typical) – Auto Low Power Mode: 5 µA (typical)
  • Hardware Block-Protection/WP# Input Pin – Top Block-Protection (top 32 KWord) for SST39WF1602 – Bottom Block-Protection (bottom 32 KWord) for SST39WF1601
  • Sector-Erase Capability – Uniform 2 KWord sectors
  • Block-Erase Capability – Uniform 32 KWord blocks
  • Chip-Erase Capability
  • Erase-Suspend/Erase-Resume Capabilities
  • Hardware Reset Pin (RST#)
  • Security-ID Feature – SST: 128 bits; User: 128 bits
  • Fast Erase and Word-Program: – Sector-Erase Time: 36 ms (typical) – Block-Erase Time: 36 ms (typical) – Chip-Erase Time: 140 ms (typical) – Word-Program Time: 28 µs (typical)
  • Packages Available – 48-ball TFBGA (6mm x 8mm) – 48-ball WFBGA (5mm x 6mm) – 48-ball WFBGA (4mm x 6mm)
  • All non-Pb (lead-free) devices are RoHS compliant
View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Add To Cart

Device Overview

Summary

The SST39WF1602 is a 1M x16 CMOS Multi-Purpose Flash Plus (MPF+) manufactured with proprietary, high-performance CMOS SuperFlash technology. The split-gate cell design and thick-oxide tunneling injector attain better reliability and manufacturability compared with alternate approaches. The SST39WF1602 writes (Program or Erase) with a 1.65-1.95V power supply. This device conforms to JEDEC standard pin assignments for x16 memories.

Additional Features
  • Organized as 1M x16
  • Low Power Consumption (typical values at 5 MHz)– Active Current: 5 mA (typical)– Standby Current: 5 µA (typical)– Auto Low Power Mode: 5 µA (typical)
  • Hardware Block-Protection/WP# Input Pin– Top Block-Protection (top 32 KWord)for SST39WF1602– Bottom Block-Protection (bottom 32 KWord)for SST39WF1601
  • Sector-Erase Capability– Uniform 2 KWord sectors
  • Block-Erase Capability– Uniform 32 KWord blocks
  • Chip-Erase Capability
  • Erase-Suspend/Erase-Resume Capabilities
  • Hardware Reset Pin (RST#)
  • Security-ID Feature– SST: 128 bits; User: 128 bits
  • Fast Erase and Word-Program:– Sector-Erase Time: 36 ms (typical)– Block-Erase Time: 36 ms (typical)– Chip-Erase Time: 140 ms (typical)– Word-Program Time: 28 µs (typical)
  • Packages Available– 48-ball TFBGA (6mm x 8mm)– 48-ball WFBGA (5mm x 6mm)– 48-ball WFBGA (4mm x 6mm)
  • All non-Pb (lead-free) devices are RoHS compliant
